When enough of a SOLIDWORKS file’s data is lost or damaged, the file is considered corrupt and cannot be read by the program.

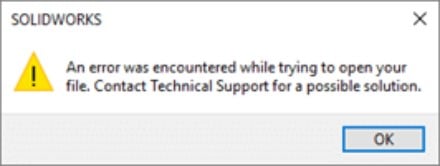

A corrupted file will often result in an error message when opened or saved because the program understands it cannot properly read the file. The mistakes can vary a little, but often they look somewhat like this:

Therefore, the first thing we should do when we encounter this notification is try to open it on a separate computer. If it functions, fantastic! You close it and reopen it after saving.

No matter how many workstations you attempt, this usually causes the file to break. You could still see the error notice. If this occurs, there are further actions you may take to recover the SolidWorks file.

Reasons that might possibly be the source of this issue

1. File corruption – A corrupted file is the root of this problem. It could be the result of a feature, entity, relation, etc. Sending the problem to the SOLIDWORKS development team is the only method to fix it. There are various tools available in SOLIDWORKS that may be used to repair the file.
2. When a part file for an assembly is saved in a higher version and the assembly is opened in a lower version, the message “Assembly component saved in higher version” will show up.
3. Large assembly – This error may occur while working on a large assembly file that has an external reference usage.
4. The most probable cause is SOLIDWORKS itself; to address these problems, SOLIDWORKS released a number of service packs.

Method 1: Allowing SOLIDWORKS fix the file

The program may offer to try to fix the file if it detects that it is corrupted when the file is opened in particular circumstances. SOLIDWORKS 2017 and later have access to this functionality, although not all damaged files may be recoverable using it.

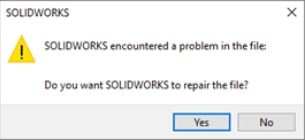

Simply choose Yes when this box appears to initiate file repair.

Method 2: SolidWorks file recovery

If it’s a SolidWorks assembly:

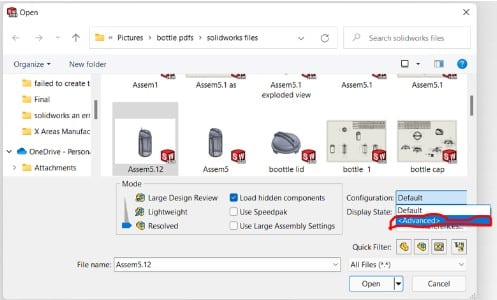

Startup SolidWorks.Choose “File” Open. Select the assembly file, then click on “Configuration” and select “Advanced>.”Click “Open”

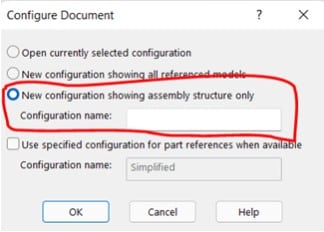

When the Configure Document box appears, select the third option, “New configuration revealing assembly structure only.”

For this new setup, give it a name.

All components and supporting assemblies will be suppressed when the Assembly opens.

For the file to be recovered, select every component and then choose unsuppressed.

If you discover that a part file is corrupted, the geometrical data can occasionally be saved by utilizing SP5 from an earlier version of SOLIDWORKS. For instance, install SOLIDWORKS 2020 SP5 and try accessing the faulty component file there if you have it in SOLIDWORKS 2021.

If the geometry itself isn’t faulty, this eliminates all the features and just leaves you with the file’s solid geometry. If it opened in 2019 SP5, go ahead and save it as a STEP or Parasolid file format.

In SOLIDWORKS 2020, this may be imported once more as solid geometry without features, and the corruption error ought to be fixed. When you have drawing corruptions, go to File > Open and locate the drawing file. Choose it but don’t open it just yet. Click Open after setting the Mode to Quick View.

This will enable you to load each drawing sheet separately so that you can identify the corrupted sheet. After that, you may attempt to access any components or assemblies that are utilized on that page to see whether they have been corrupted. If not, the design sheet must be rebuilt since it is corrupted.

Method 3: Check File Size

The amount of the damage may occasionally be ascertained by the change in file size since file corruptions result in data loss. Navigate to the file’s location in your file browser to verify this. Check the file’s size by selecting Properties from the context menu when you right-click on it.

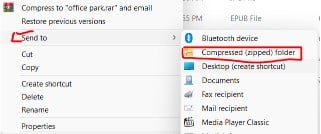

Press the Cancel button. Right-click the file once more, and then select Send To > Compressed (zipped) Folder. Next, choose Properties from the context menu of this new zipped folder’s right-click menu, then double-check its size.

Sadly, the file is probably not recoverable if the size of the zipped folder is significantly lower than the file size. Even yet, there is still a reasonable potential for recovery if the drop was only a few KB.

SolidWorks — это 3D-CAD система для проектирования механических деталей и сборок. Как и все программы, SolidWorks может иметь проблемы с загрузкой файлов. В этой статье мы рассмотрим основные проблемы, которые могут возникнуть при загрузке файлов в SolidWorks, и предложим решения для их устранения.

Неудачная загрузка файла

Одной из основных проблем при загрузке файла является сбой или ошибка во время процесса. В некоторых случаях, файлы могут быть слишком большими для загрузки, тогда как в других случаях, фрагментированный жесткий диск может привести к потере данных.

Решение:

• Увеличить объем оперативной памяти или освободить ресурсы компьютера для облегчения нагрузки.
• Удостовериться, что размер файла, который вы пытаетесь загрузить, не превышает максимально допустимый размер.
• Использовать проверку на ошибки диска, чтобы исключить возможность сбоя внутри жесткого диска.
• Попробовать загрузить файл на другой компьютер, чтобы убедиться, что проблема связана с файлом, а не с программой.

Не совместимость файлов

Другой распространенной проблемой является несовместимость файлов, которая может произойти, если файл был создан в более ранней версии программы.

Решение:

• Открыть файл на компьютере с более ранней версией программы и сохранить его в совместимом формате.
• Импортировать геометрию файла или экспортировать ее в допустимый формат.

Нарушение целостности файла

Если файл был поврежден или испорчен, то при чтении его данных на экране могут появляться ошибки или сообщения об ошибках.

Решение:

• Использовать один из многих онлайновых ресурсов для восстановления поврежденных файлов.
• Попробовать открыть и сохранить файл на другом компьютере.
• Использовать резервную копию файла, если таковая имеется.

Недостаточно прав доступа

Если вас не хватает прав доступа или вы не прошли проверку подлинности, то вы можете столкнуться с ошибкой доступа.

Решение:

• Удостовериться, что у вас есть достаточный уровень прав доступа или обратиться к администратору компьютера.
• Проверить, что учетная запись пользователя имеет возможность доступа к файлу.
• Проверить, что файл не защищен паролем.

Вывод

SolidWorks — это мощный инструмент для проектирования механических деталей и сборок. Однако, он также может столкнуться с проблемами при загрузке файлов. Надеемся, что наши рекомендации помогут вам избежать этих проблем, и вы сможете использовать программу без каких-либо препятствий.

The back end of PDM has many tools available for troubleshooting errors in the vault. If you are running into “The Archive Server could not find the file with the specified ID” or “Error accessing a file on the Archive Server” error messages, it could be caused by many different sources, so this fix may not work for every scenario. This specific case can occur when an error during a change to the vault is made. Changes such as modifying an install, adding a vault, changes to servers, or new programs using a SQL database.

Regardless of what caused the errors, when trying to check a file in the vault, this error message pops up:

Or when trying to add files to the vault from a local drive and get this error “Error accessing a file on the Archive Server”

If you are experiencing both these errors, they can be symptoms of a simple SOLIDWORKS PDM troubleshooting fix.

If you have gone this far in the diagnoses, notice how the log file doesn’t have any record of your archive server errors (Log file information listed near bottom of this article). This can be confusing since the error is expected to be recorded to the log. In this case, you must verify your archive folder location against the archive table registry key.

To verify against Archive Table Registry Key:

1. Open the Archive Server Configuration tool. (Start > Archive Server Configuration)
2. Navigate to your Archives folder and find the vault that is causing errors. Right-click the vault and select “Properties”. In the properties window there is information about the vaults archive location path.
3. Copy and paste this path in File Explorer and compare it to the path given in the Archive Server tool. It is easy to overlook very minute details, but upon thorough comparison we can see there is a space in “PDM Data” in File Explorer, but in the Archive Server Tool, the path has it written as “PDMData” with no space.
4. Go ahead and change the path in File Explorer to match what is given in the archive tool and that should fix the errors.
5. Refresh the vault from windows and restart the server from the Archive Server tool.
6. Test the changes: try to upload new files to your vault and check them in.The archive server reference path has been restored and the vault should be functioning as it did before the errors started.


   If this didn’t solve the issue…Another SOLIDWORKS PDM Troubleshooting Option

   Usually, if you get errors in the vault, you can access more information about them from the “SOLIDWORKS PDM Administration Tool” under Local Settings > Log File.

When viewing errors from the log files it will give information such as the one below:

Here you can gather important information such as the Server name, Database, Module, etc.

Be responsible when troubleshooting systems that are holding your businesses’ data, it is extremely important that you are managing one of your company’s most important assets, it’s DATA.
