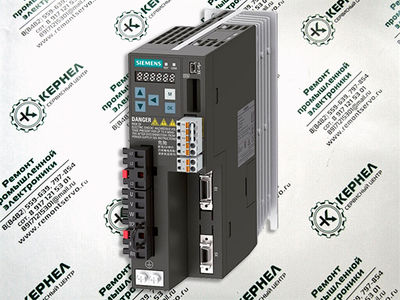

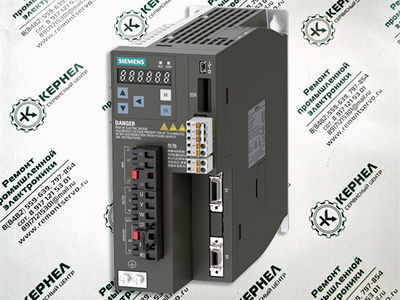

Ремонт SINAMICS V90 в сервисном центре, преимущества
Компания «Кернел» производит ремонт сервоприводов SINAMICS V90 в с 2002 года. За это время мы накопили колоссальный опыт в том числе опыт в ремонте SINAMICS V90 такого известного производителя как SIEMENS. Ремонт подобной промышленной электроники ответственное и сложное занятие, требующие максимальной отдачи, профессионализма и максимально полной материальной базе.
сервопривод SINAMICS V90, как и другие его собратья оснащен информационной панелью, призванной сделать общение оператора и сервопривода максимально легким и комфортным. При вводе в эксплуатацию оборудования с помощью данной панели устройство программируется и настраивается, а в случае непредвиденной ситуации на панель сервопривода выводится ошибка, вызвавшая аварийную остановку оборудования. В таблицах ниже приведены все возможные предупреждения и ошибки SINAMICS V90. Устранение причины ошибки и ее сброс на сервоприводе позволит в кратчайшие сроки возобновить работу. К сожалению не все ошибки можно исправить самостоятельно, некоторые ошибки SINAMICS V90 возможно исправить только в специализированных сервисных центрах, проведя качественный ремонт.
Специалисты нашего сервисного центра уделяют максимальное внимание к качеству исполнения ремонта, программирования и настройке сервоприводов, не зависимо от производителя данного промышленного оборудования. Именно поэтому мы смело даем гарантию на ремонт SINAMICS V90 и замененные в процессе ремонта компоненты шесть месяцев.
Ремонт SINAMICS V90 в производится исключительно с использованием оригинальных запасных частей, на компонентном уровне с применением высокотехнологичного оборудования, квалифицированным персоналом с инженерным образованием.
Если на вашем производстве появились проблемы с сервоприводом SINAMICS V90, которые вы не можете решить самостоятельно, мы всегда рады вам помочь. Обращайтесь в сервисный центр «Кернел». Специалисты нашей компании в минимальные сроки проведут глубокую диагностику сервопривода и последующий ремонт SINAMICS V90 в . Оставьте заказ на ремонт SINAMICS V90 используя форму на сайте.
Инженеры сервисного центра Кернел выполнят ремонт SINAMICS V90 в максимально сжатые сроки. При ремонте сервопривода SINAMICS V90 в вы гарантированно получаете:
- Глубокую диагностику неисправного сервопривода с выявлением неисправных компонентов;
- Замену неисправных компонентов на новые;
- Ремонт SINAMICS V90 в максимально сжатые сроки;
- Проверку отремонтированного сервопривода на специальном стенде;
- Оригинальные запасные части;
- Гарантию на ремонт SINAMICS V90 6 месяцев;
- Гарантию на запасные части 6 месяцев.
Компания «Кернел» предлагает квалифицированный ремонт сервоприводов SINAMICS V90 в сжатые сроки по цене 20% — 40% от стоимости нового частотника. За время существования компании, наши инженеры отремонтировали не одну тысячу единиц промышленного оборудования, постоянно повышая свою квалификацию. Вот далеко не полный список сервоприводов SINAMICS серии V20 ремонт которых предлагает наш сервисный центр.
Ремонт SINAMICS V90 в сервисном центре «Кернел»
Ниже приведены типы сервоприводов SINAMICS V90 ремонт которых предлагает наш сервисный центр.
|
|
К сожалению, от поломок дорогостоящего оборудования никто не застрахован. В зависимости от разных факторов, рано или поздно, любое, даже самое надежное промышленное оборудование выходит из строя, сервопривод SINAMICS V90 не исключение. В данной ситуации на помощь придет наша компания, и инженеры, профессионализм которых не ставится под сомнение.
Благодаря новейшему инновационному диагностическому оборудованию инженеры сервисного центра в кратчайшие сроки проведут глубокую диагностику вышедшего из строя сервопривода SINAMICS V90 найдут неисправный компонент и заменят его на новый.
Еще раз хочется подчеркнуть тот факт, что, производя ремонт SINAMICS V90 мы используем только оригинальные запасные части и даем гарантию не только на проведенные ремонтно-восстановительные работы, но и на запасные части, которые были заменены в процессе ремонта сервопривода шесть месяцев.
Менеджеры и специалисты нашего сервисного центра всегда стараются входить в положение заказчика и выполнить ремонт SINAMICS V90 в максимально кратчайшие сроки тем самым минимизировать простой оборудования.
Мы ценим своих клиентов и делаем упор на качество выполненных работ, и конечно же время его выполнения. Сберегите свой бюджет, обратитесь за ремонтом SINAMICS V90 в нашу компанию.
Предупреждения и ошибки SINAMICS V90
Ниже перечислены общие неисправности и аварийные сигналы. Для просмотра подробной информации обо всех неисправностях и аварийных сигналах вызовите интерактивную справку по активной неисправности/аварии в инженерном инструменте SINAMICS VASSISTANT.
Ошибки сервопривода SINAMICS V90
Ошибка |
Причина |
Устранение |
F1000: Internal software error Reaction: OFF2 Acknowledgement: POWER ON |
An internal software error has occurred. |
|
F1001: FloatingPoint exception Reaction: OFF2 Acknowledgement: POWER ON |
An exception occurred during an operation with the FloatingPoint data type. |
|
F1002: Internal software error Reaction: OFF2 Acknowledgement: IMMEDIATELY |
An internal software error has occurred. |
|
F1003: Acknowledgement delay when accessing the memory Reaction: OFF2 Acknowledgement: IMMEDIATELY |
A memory area was accessed that does not return a «READY». |
|
F1015: Internal software error Reaction: OFF2 Acknowledgement: POWER ON |
An internal software error has occurred. |
|
F1018: Booting has been interrupted several times Reaction: NONE Acknowledgement: POWER ON |
Module booting was interrupted several times. As a consequence, the module boots with the factory setting. Possible reasons for booting being interrupted:
After this fault is output, then the module is booted with the factory settings. |
Note: |
F1030: Sign-of-life failure for master control Reaction: OFF3 Acknowledgement: IMMEDIATELY |
For active PC master control, no sign-oflife was received within the monitoring time. | Contact the Hotline. |
F1611: SI CU: Defect detected Reaction: OFF2 Acknowledgement: IMMEDIATELY |
The drive-integrated «Safety Integrated» (SI) function on the Control Unit (CU) has detected an error and initiated an STO |
|
F1910: Fieldbus: setpoint timeout Reaction: OFF3 Acknowledgement: IMMEDIATELY |
The reception of setpoints from the fieldbus interface (Modbus/USS) has been interrupted.
|
Restore the bus connection and set the controller to RUN. |
F7011: Motor overtemperature Reaction: OFF2 Acknowledgement: IMMEDIATELY |
|
|
F7085: Open-loop/closedloop control parameters changed Reaction: NONE Acknowledgement: IMMEDIATELY |
Open-loop/closed-loop control parameters have had to be changed for the following reasons:
|
It is not necessary to change the parameters as they have already been correctly limited. |
F7093: Drive: Test signal error Reaction: OFF3 Acknowledgement: IMMEDIATELY |
The limit rotation of the motor (p29027) is inappropriate. | Modify the value of parameter p29027. |
F7220: Drive: Master control by PLC missing Reaction: OFF1 Acknowledgement: IMMEDIATELY |
The «master control by PLC» signal was missing in operation.
|
|
F7403: Lower DC link voltage threshold reached Reaction: OFF1 Acknowledgement: IMMEDIATELY |
The DC link voltage monitoring is active and the lower DC link voltage threshold was reached in the «Operation» state. |
|
F7404: Upper DC link voltage threshold reached Reaction: OFF2 Acknowledgement: IMMEDIATELY |
The DC link voltage monitoring is active and the upper DC link voltage threshold was reached in the «Operation» state. |
|
F7410: Current controller output limited Reaction: OFF2 Acknowledgement: IMMEDIATELY |
The condition «I_act = 0 and Uq_set_1 longer than 16 ms at its limit» is present and can be caused by the following:
|
|
F7412: Commutation angle incorrect (motor model) Reaction: ENCODER Acknowledgement: IMMEDIATELY |
An incorrect commutation angle was detected that can result in a positive coupling in the speed controller. Possible causes:
|
|
F7420: Drive: Current setpoint filter natural frequency > Shannon frequecy | One of the filter natural frequencies is greater than the Shannon frequency. |
|
F7430: Changeover to openloop torque controlled operation not possible Reaction: OFF2 Acknowledgement: POWER ON |
For encoderless operation, the converter cannot change over to closed-loop torquecontrolled operation. |
|
F7431: Changeover to encoderless operation not possible Reaction: OFF2 Acknowledgement: POWER ON |
For closed-loop torque control, the converter cannot change over to encoderless operation. |
|
F7442: LR: Multiturn does not match the modulo range Reaction: OFF1 (OFF2, OFF3) Acknowledgement: IMMEDIATELY |
The ratio between the multiturn resolution and the modulo range (p29246) is not an integer number. This results in the adjustment being set back, as the position actual value cannot be reproduced after poweroff/power-on. |
Make the ration between the multiturn resolution and the modulo range an integer number. The ratio v is calculated as follows:
|
F7443: Reference point coordinate not in the permissible range Reaction: OFF1 (OFF2, OFF3) Acknowledgement: IMMEDIATELY |
The reference point coordinate received when adjusting the encoder via connector input p2599 lies outside the half of the encoder range and cannot be set as actual axis position. Fault value (r0949, interpret decimal): Maximum permissible value for the reference point coordinate. |
Set the reference point coordinate to a lower value than specified in the fault value. See also: p2599 (EPOS reference point coordinate value. For a motor with an absolute encoder, the maximum permissible encoder range is calculated by the following formula:
|
F7450: Standstill monitoring has responded Reaction: OFF1 Acknowledgement: IMMEDIATELY |
After the standstill monitoring time expired, the drive left the standstill window.
|
Check the causes and resolve. |
F7451: Position monitoring has responded Reaction: OFF1 Acknowledgement: IMMEDIATELY |
When the position monitoring time (p2545) expired, the drive had still not reached the positioning window (p2544).
|
Check the causes and resolve. |
F7452: Following error too high Reaction: OFF1 Acknowledgement: IMMEDIATELY |
The difference between the position setpoint and position actual value (following error dynamic model) is greater than the tolerance (p2546).
|
Check the causes and resolve. |
F7453: Position actual value preprocessing error Reaction: OFF2 Acknowledgement: IMMEDIATELY |
An error has occurred during the position actual value preprocessing. | Check the encoder for the position actual value preprocessing. |
F7458: EPOS: Reference cam not found Reaction: OFF1 (OFF2, OFF3) Acknowledgement: IMMEDIATELY |
After starting the search for reference, the axis moved through the maximum permissible distance to seach for the reference cam without actually finding the reference cam. |
See also: p2606 (EPOS search for reference reference cam maximum distance) |
F7459: Zero mark not detected Reaction: OFF1 Acknowledgement: IMMEDIATELY |
After leaving the reference cam, the axis has traversed the maximum permissible distance (p2609) between the reference cam and the zero mark without finding the zero mark. |
See also: p2609 (EPOS search for reference |
F7460: EPOS: End of reference cam not found Reaction: OFF1 (OFF2, OFF3) Acknowledgement: IMMEDIATELY |
During the search for reference, when the axis reached the zero mark it also reached the end of the traversing range without detecting an edge at the binector input «reference cam». Maximum traversing range: -2147483648 |
|
F7464: EPOS: Traversing block is inconsistent Reaction: OFF1 (OFF2, OFF3) Acknowledgement: IMMEDIATELY |
The traversing block does not contain vaild information. Alarm value: Number of the traversing block with invaild information. |
Check the traversing block and where relevant, take into consideration alarms that are present. |
F7475: EPOS: Target position < start of traversing range Reaction: OFF1 (OFF2, OFF3) Acknowledgement: IMMEDIATELY |
The target position for relative traversing lies outside the traversing range. | Correct the target position. |
Все возможные ошибки и предупреждения сервопривода SINAMICS V90
Скачать мануал, руководство пользователя SINAMICS V90 в формате PDF
Оставить заявку на ремонт SINAMICS V90
Оставить заявку на ремонт SINAMICS V90 в можно с помощью специальной формы, которая вызывается нажатием одноименной кнопки в верхней части страницы. Все вопросы, связанные с ремонтом SINAMICS V90 в , вы можете задать нашим менеджерам. Связаться с ними можно несколькими способами:
- Заказав обратный звонок (кнопка в правом нижнем углу сайта)
- Посредством чата (кнопка расположена с левой стороны сайта)
- Позвонив по номеру телефона:
- +7(8482) 79-78-54;
- +7(8482) 55-96-39;
- +7(917) 121-53-01
- Написав на электронную почту: 89171215301@mail.ru
Вот далеко не полный список производителей промышленной электроники и оборудования, ремонтируемой в нашей компании.
-
Contents
-
Table of Contents
-
Bookmarks
Quick Links
SINAMICS V90, SIMOTICS S-1FL6
SINAMICS/SIMOTICS
SINAMICS V90, SIMOTICS S-1FL6
Operating Instructions
Pulse train, USS/Modbus interface
09/2016
A5E36037884-002
___________________
Preface
Fundamental safety
___________________
instructions
___________________
General information
___________________
Mounting
___________________
Connecting
___________________
Commissioning
___________________
Basic operator panel (BOP)
___________________
Control functions
___________________
Safety Integrated function
___________________
Tuning
___________________
Parameters
___________________
Diagnostics
___________________
Appendix
1
2
3
4
5
6
7
8
9
10
11
A
Summary of Contents for Siemens SINAMICS V90
● Alarms
To acknowledge faults, proceed as follows:
Note
If you do not eliminate the cause(s) of the fault, it can appear again after no button operation for five seconds. Make sure
•
that you have eliminated the cause(s) of the fault.
You can acknowledge faults using RESET signal. For details, refer to Operating Instructions.
•
You can acknowledge faults on SINAMICS V-ASSISTANT. For details, refer to SINAMICS V-ASSISTANT Online Help.
•
7.2
This section lists only common faults and alarms. To view the detailed information of all faults and alarms, call the online
help for an active fault/alarm in the SINAMICS V-ASSISTANT engineering tool.
Fault list
Fault
Description
F1000
Internal software error
F1001
Floating Point exception
F1002
Internal software error
F1003
Acknowledgment delay when accessing the
memory
F1015
Internal software error
F1018
Booting has been interrupted several times
F1030
Sign-of-life failure for master control
F1611
SI CU: Defect detected
F7011
Motor overtemperature
F7085
Open-loop/closed-loop control parameters
changed
F7093
Test signal error
F7403
Lower DC link voltage threshold reached
F7404
Upper DC link voltage threshold reached
Getting Started
A5E36037886-003, 04/2017
Fault
Description
F7800
Drive: No power unit present
F7801
Motor overcurrent
F7802
Infeed or power unit not ready
F7815
Power unit has been changed
F7900
Motor blocked/speed controller at its limit
F7901
Motor overspeed
F7995
Motor identification failure
F30001
Power unit: Overcurrent
F30002
DC link voltage, overvoltage
F30003
DC link voltage, undervoltage
F30004
Drive heat sink overtemperature
F30005
Power unit: Overload I
F30011
Line phase failure in main circuit
t
2
113
-
Page 1
SINAMICS V90, SIMOTICS S-1FL6… -
Page 3
Preface Fundamental safety instructions SINAMICS/SIMOTICS General information Mounting SINAMICS V90, SIMOTICS S-1FL6 Connecting Commissioning Operating Instructions Basic operator panel (BOP) Control functions PROFINET communication Safety Integrated function Tuning Parameters Diagnostics Appendix PROFINET (PN) interface 04/2020 A5E37208830-008… -
Page 4
Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems. -
Page 5: Preface
Help nostics for the SINAMICS V90 drives via the SINAMICS V-ASSISTANT engineering tool. Target group This manual provides information about the SINAMICS V90 PN servo system for planners, operators, mechanical engineers, electrical engineers, commissioning engineers, and service engineers. Technical support…
-
Page 6
Siemens does not accept any warranty for the properties of third-party products. Compliance with the General Data Protection Regulation Siemens respects the principles of data protection, in particular the data minimization rules (privacy by design). For this product, this means: The product does not process neither store any person-related data, only technical function data (e.g. -
Page 7
24 months since the date of manufacture of the product. ● Warranty scope Siemens shall replace or repair a defective product free of charge if a defect attributable to Siemens occurs during the warranty period stated above. This warranty does not cover defects caused by the product reaching the end of its service life and replacement of consumables or parts with limited service life. -
Page 8
● The indemnity obligation of Siemens for all losses of the customer attributable to Siemens does not exceed the total amount paid by the customer for purchasing the relevant product. -
Page 9: Table Of Contents
Function list ……………………..54 Technical data ……………………. 55 2.6.1 Technical data — servo drives ………………..55 2.6.1.1 SINAMICS V90 PN 200 V variant ………………. 55 2.6.1.2 SINAMICS V90 PN 400 V variant ………………. 58 2.6.2 Technical data — servo motors ………………..61 2.6.2.1…
-
Page 10
BOP overview ……………………139 6.1.1 LED status indicators ………………….140 6.1.2 BOP display ……………………. 141 6.1.3 Control buttons ……………………144 Parameter structure ………………….145 Actual status display ………………….146 Basic operations……………………147 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 11
STW2 control word (for telegrams 102, 105) ……………. 212 8.3.5 STW1 control word (for telegrams 7, 9, 110, 111) …………..213 8.3.6 STW2 control word (for telegrams 9, 110, 111) …………..214 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 12
Probability of failure of the safety function …………….242 9.3.5 Response time ……………………242 9.3.6 Residual risk ……………………. 243 Safety Integrated basic function ………………. 243 9.4.1 Safe Torque Off (STO) ………………….243 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 13
Encoder connector assembly ………………..344 A.3.3 Brake connector assembly ………………..348 Motor selection ……………………349 A.4.1 Selection procedure ………………….349 A.4.2 Parameter description ………………….350 A.4.3 Selection examples ………………….. 352 Replacing fans ……………………355 Index…………………………357 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 14
Table of contents SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 15: Fundamental Safety Instructions
• You must use an additional residual-current device (RCD) if a conductor-ground short circuit does not reach the short-circuit current required for the protective device to respond. The required short-circuit current can be too low, especially for TT supply systems. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 16
Hazardous touch voltages can occur through capacitive cross-coupling due to unconnected cable shields. • As a minimum, connect cable shields and the cores of cables that are not used at one end at the grounded housing potential. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 17
• Install built-in units in a suitable metal cabinet in such a way that personnel are protected against fire and smoke, or take other appropriate measures to protect personnel. • Ensure that smoke can only escape via controlled and monitored paths. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 18
• Therefore, if you move closer than 20 cm to the components, be sure to switch off radio devices or mobile telephones. • Use the «SIEMENS Industry Online Support app» only on equipment that has already been switched off. NOTICE… -
Page 19
• Ensure that the safety functions used in your drives and automation tasks are adjusted and activated through appropriate parameterizing. • Perform a function test. • Only put your plant into live operation once you have guaranteed that the functions relevant to safety are running correctly. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 20
• Operate the motor according to the relevant specifications. • Only operate the motors in conjunction with effective temperature monitoring. • Immediately switch off the motor if excessively high temperatures occur. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 21: Equipment Damage Due To Electric Fields Or Electrostatic Discharge
As the user you yourself are responsible for ensuring that the products described are operated correctly. Application examples do not relieve you of your responsibility for safe handling when using, installing, operating and maintaining the equipment. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 22: Security Information
Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure…
-
Page 23: Residual Risks Of Power Drive Systems
6. Influence of network-connected communication systems, e.g. ripple-control transmitters or data communication via the network For more information about the residual risks of the drive system components, see the relevant sections in the technical user documentation. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 24
Fundamental safety instructions 1.5 Residual risks of power drive systems SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 25: General Information
General information The SINAMICS V90 drives with the PROFINET interface (referred to as SINAMICS V90 PN) are available in two variants, 400 V variant and 200 V variant. The 200 V variant is available in four frame sizes: FSA, FSB, FSC, and FSD. Frame sizes A, B, and C are used on the single phase or three phase power network while frame size D is used on the three phase power network only.
-
Page 26
General information 2.1 Scope of delivery Components in the SINAMICS V90 PN 400 V variant drive package Component Illustration Rated pow- Outline dimension Frame size Article number er (kW) (Width x Height x Depth, mm) SINAMICS V90 PN, 60 x 180 x 200… -
Page 27
③ ⑨ Output data QR code ④ ⑩ Degree of protection and supported Product serial number motor rated power ⑤ Article number ⑪ Rated short-circuit current ⑥ ⑫ MAC address Copper wire SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 28
General information 2.1 Scope of delivery Article number explanation (example) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 29
General information 2.1 Scope of delivery Serial number explanation (example) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 30: Motor Components
1FL6044-2AF21-1❑❑1 1.5/2.0 1FL6052-2AF21-0❑❑1 1FL6054-2AF21-0❑❑1 1.5/2.0 1FL6052-2AF21-2❑❑1 1FL6054-2AF21-2❑❑1 User documentation SIMOTICS S-1FL6 Servo Motors Installation Guide Note: For the SH50 motors with a multi-turn absolute encoder, only the angular connector version is available. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 31
❑❑1 1FL6092-1AC61- ❑ ❑❑1 1FL6094-1AC61- ❑ ❑❑1 1FL6096-1AC61- ❑ ❑❑1 Straight connectors with a fixed outlet direction Angular connectors with a flexible outlet direction User documentation SIMOTICS S-1FL6 Servo Motors Installation Guide SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 32
Rated current ⑤ ⑭ Static torque Holding brake ⑥ ⑮ Rated voltage Motor ID ⑦ ⑯ Rated power Weight ⑧ Encoder type and resolution ⑰ Maximum speed ⑨ ⑱ Thermal class Rated speed SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 33
General information 2.1 Scope of delivery Article number explanation SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 34: Device Combination
Cable length 1AD0 1AF0 10 m 1BA0 20 m 1CA0 Low inertia motor with straight connectors Low inertia motor with angular connectors The last four numbers in the cable article number (..) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 35
Absolute encoder 20-bit + 12-bit multi-turn Absolute encoder 20-bit + 12-bit multi-turn Cable length 1AD0 1AF0 1AH0 10 m 1BA0 15 m 1BF0 20 m 1CA0 The last four numbers in the cable article number (..) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 36
The last four numbers in the cable article number (..) Note You can select a SINAMICS V90 servo drive for all the SIMOTICS S-1FL6 servo motors whose rated power values are equal to or smaller than that specified as matching with this servo drive in the table above. -
Page 37: Product Overview
General information 2.3 Product overview Product overview SINAMICS V90 PN servo drives ● SINAMICS V90 PN 200V variant FSA and FSB FSC and FSD SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 38
General information 2.3 Product overview ● SINAMICS V90 PN 400V variant FSAA and FSA FSB and FSC SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 39
General information 2.3 Product overview SIMOTICS S-1FL6 servo motors ● Low inertia motors Note For the SH50 motors with a multi-turn absolute encoder, only the angular connector version is available. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 40
General information 2.3 Product overview ● High inertia motors with straight connectors ● High inertia motors with angular connectors SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 41: Accessories
2CT10-..3 x 2 x 0.22 + 2 x 2 x 0SB14 0SL11 encoder cable 0.25 Absolute 2DB10-..3 x 2 x 0.22 + 2 x 2 x 0DB11 encoder cable 0.25 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 42
The «…» in the article number indicates the code for cable length, in which 1AD0 = 3 m, 1AF0 = 5 m, 1AH0 = 7 m, 1BA0 = 10 m, 1BF0 = 15 m, 1CA0 = 20 m. For more information about the cables, see Section «Technical data — cables (Page 69)». SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 43
The quantity of connectors in the package will change to 5 pieces in the near future due to product package upgrading. Consult with your Siemens representative to confirm the packaging quantity before purchasing. For more information about assembling cable connectors on both the drive and motor sides, see Sections «Assembly of cable terminals/connectors on the drive side (Page 337)»… -
Page 44: Profinet Cable And Connector
FSAA 6SL3200-0WT00-0AA0 6SL3200-0WT01-0AA0 You can obtain the connectors for SINAMICS V90 400V servo drives of FSB and FSC from the connector kits for SINAMICS V90 400V servo drives of FSAA or FSA. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 45: External 24 V Dc Power Supply
Note The maximum length of the cable used to connect the 24 V power supply to the drive is 10 m. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 46: Fuse/Type E Combination Motor Controller
National Electrical Code and any other additional local codes. Refer to the table below for the selection of fuses and Type E combination motor controllers: SINAMICS V90 200 V variant Recommended fuse SINAMICS V90…
-
Page 47
3RV 2011-4AA10 10 to 16 230/240 3RV 2021-4AA10 The above types for Type E combination motor controllers are listed in compliance with both CE and UL/cUL standards. SINAMICS V90 400 V variant Recommended fuse SINAMICS V90 CE-compliant fuse UL/cUL-compliant fuse Frame Rated power Article No. -
Page 48
• Clamping voltage VPR = 2000 V, IN = 3kA min, MCOV = 508 V AC • Suitable for Type 2 SPD application • Clamping shall be provided between phases and also between phase and ground SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 49: Braking Resistor
General information 2.4 Accessories 2.4.7 Braking resistor The SINAMICS V90 PN has a built-in braking resistor. The table below shows the information of the built-in resistor: SINAMICS V90 PN Resistance (Ω) Max. power (kW) Rated power (W) Max. energy (kJ) 1/3-phase, 200 V AC to 240 V AC FSA (0.2 kW)
-
Page 50: Line Filter
The line filter restricts the conductive interference emitted from the SINAMICS V90 PN to the permissible values. The SINAMICS V90 PN drives with these external line filters have been tested in accordance with the emission requirements of the Category C2 environment.
-
Page 51
General information 2.4 Accessories Outline dimensions (mm) Filter used on the single phase power network Filter used on the three phase power network Rated current (A) W ø1 176.7 176.7 251.7 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 52
Noise frequency (MHz) 0.15 CM (dB) DM (dB) Rated current 18 A Noise frequency (MHz) 0.15 CM (dB) DM (dB) Rated current 20 A Noise frequency (MHz) 0.15 CM (dB) DM (dB) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 53
General information 2.4 Accessories Connecting (example) Filter used on the single phase power network SINAMICS V90 PN Rated current Max. tightening Wire gauge (AWG) Stripping length L torque (Nm) (mm) 200 V variant (6SL3210-5FB..-..) 10-1UF2 14 to 12 10-2UF2 10-4UF1… -
Page 54
General information 2.4 Accessories Filter used on the three phase power network SINAMICS V90 PN Rated current Tightening torque Wire gauge (AWG) Stripping length L (Nm) (mm) 200 V variant (6SL3210-5FB..-..) 10-1UF2 0.7 to 0.8 14 to 12 10-2UF2 10-4UF1… -
Page 55: Micro Sd Card/Sd Card
Optionally a micro SD card/SD card can be used to copy drive parameters or perform a firmware update. Micro SD card is used for 200 V variant servo drive and SD card is used for 400 V variant servo drive. Siemens recommends you to use the Siemens SD card (article number: 6SL3054-4AG00-2AA0).
-
Page 56: Function List
Control signals and status signals can be assigned to four EPOS, S (Page 110) programmable digital inputs and two digital outputs PROFINET communication Supports communication between the SINAMICS V90 PN EPOS, S (Page 205) servo drive and PLC with PROFINET communication proto- SINAMICS V-ASSISTANT…
-
Page 57: Technical Data
General information 2.6 Technical data Technical data 2.6.1 Technical data — servo drives 2.6.1.1 SINAMICS V90 PN 200 V variant General technical data Parameter Description Overload capability 300% Control system Servo control Dynamic brake Built-in Protective functions Earthing fault protection, output short-circuit protection…
-
Page 58
V90 PN 400 V servo drive has an overvoltage threshold of 820 V DC and an undervoltage threshold of 320 V DC. Motor temperature is calculated by motor thermal model and protected by the output current from the drive. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 59
The values here are calculated at rated load. When SINAMICS V90 PN works with a motor with a brake, the voltage tolerance of 24 V DC power supply must be — 10% to +10% to meet the voltage requirement of the brake. -
Page 60: Sinamics V90 Pn 400 V Variant
General information 2.6 Technical data 2.6.1.2 SINAMICS V90 PN 400 V variant General technical data Parameter Description Overload capability 300% Control system Servo control Dynamic brake Built-in Protective functions Earthing fault protection, output short-circuit protection , overvoltage/undervoltage protection , drive I…
-
Page 61
V90 PN 400 V servo drive has an overvoltage threshold of 820 V DC and an undervoltage threshold of 320 V DC. Motor temperature is calculated by motor thermal model and protected by the output current from the drive. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 62
The values here are calculated at rated load. When SINAMICS V90 PN works with a motor with a brake, the voltage tolerance of 24 V DC power supply must be — 10% to +10% to meet the voltage requirement of the brake. -
Page 63: Technical Data — Servo Motors
Maximum torque (Nm) 0.48 0.96 1.91 3.82 9.54 14.3 19.1 Rated speed (rpm) 3000 Maximum speed (rpm) 5000 Rated frequency (Hz) Rated current (A) 10.6 11.6 Maximum current (A) 14.2 18.9 31.8 34.8 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 64
The former value indicates the data for low inertia motors with straight connectors; the latter value indicates the data for low inertia motors with angular connectors. Note The data of rated torque, rated power, maximum torque, and armature resistance in the above table allows a tolerance of 10%. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 65
General information 2.6 Technical data Torque-Speed characteristics SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 66
• The feature in short-term operating area varies with power supply voltages. • The continuous operating area becomes smaller and the voltage consumption on the cables grows larger when the cables in the major loop exceed 20 m. Permissible radial and axial forces SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 67: 1Fl6 Servo Motor — High Inertia
17.7 23.4 33.0 36.9 35.6 Moment of inertia (10 ) 2.7 15.3/1 15.3 22.6 29.9 47.4 69.1 90.8 134.3 Moment of inertia, with brake 16.4/1 16.4 23.7 31.0 56.3 77.9 99.7 143.2 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 68
This lifetime is only for reference. When a motor keeps running at 80% rated value and the surrounding temperature is 30 °C, the encoder lifetime can be ensured. Note The data of rated torque, rated power, and maximum torque in the above table allows a tolerance of 10%. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 69
General information 2.6 Technical data Torque-Speed characteristics SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 70
1FL604❑ and 1FL609❑ have a 5 mm of shaft sheltered in sleeves, and 1FL606❑ has an 8 mm of shaft in sleeves. Therefore, the distances to flange in the above three figures begin respectively from 5 mm, 8 mm, and 5 mm. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 71: Power Derating
+ high inertia motors of 0.4 kW to 7 kW Minimum bending radius, 5 x outer diameter static (mm) Minimum bending radius, dynamic (mm) Oil resistance EN60811-2-1 fulfilled Flame-retardant EN60332-1-1 to 1-3 fulfilled Certification RoHS, CE RoHS RoHS SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 72
1.5 kW to 2 kW and high inertia motors of 1.5 kW to 7 kW Degree of protection (motor- IP65 side only) Bending cycles 1000000: Maximum acceleration 3 m/s , maximum speed 40 m/min SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 73: Address Of Ce-Authorized Manufacturer
SINAMICS V90 drive Siemens AG Digital Industries Motion Control Frauenauracher Straße 80 DE-91056 Erlangen Germany SIMOTICS S-1FL6 motor Siemens AG Digital Industries Motion Control Industriestraße 1 DE-97615 Bad Neustadt a. d. Saale Germany SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 74
General information 2.6 Technical data SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 75: Mounting
• Avoid coming into direct contact with the drive surface. For mounting conditions, see Technical data — servo drives (Page 55). SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 76: Mounting Orientation And Clearance
3.1 Mounting the drive 3.1.1 Mounting orientation and clearance The SINAMICS V90 PN 200 V variant servo drives with rated power of 400 W and 750 W support vertical mounting and horizontal mounting. Other drives support vertical mounting only. Mount the drive in a shielded cabinet by observing the mounting orientation and clearance specified in the following illustrations.
-
Page 77
20 mm. Note When mounting the drive in the cabinet, you need to consider the temperature change of the cooling air. The rapid temperature change of the cooling air is forbidden. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 78: Drill Patterns And Outline Dimensions
Mounting 3.1 Mounting the drive 3.1.2 Drill patterns and outline dimensions SINAMICS V90 PN 200V variant (unit: mm) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 79
Mounting 3.1 Mounting the drive SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 80
Mounting 3.1 Mounting the drive SINAMICS V90 PN 400V variant (unit: mm) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 81
Mounting 3.1 Mounting the drive SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 82: Mounting The Drive
Shocks at the motor shaft end can cause an encoder damage. Do not exert any shock at the shaft end. • For mounting conditions, see Technical data — servo motors (Page 61). SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 83: Mounting Orientation And Dimensions
(weight force of the drive elements) and the necessary degree of protection. SIMOTICS S-1FL6 Low inertia servo motors (unit: mm) Shaft height 20 mm Rated power Rated torque 0.05 kW 0.16 Nm 38.5 0.1 kW 0.32 Nm 38.5 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 84
Rated torque 0.2 kW 0.64 Nm 39.5 132.5 0.4 kW 1.27 Nm 39.5 157.5 Shaft height 40 mm Rated power Rated torque 0.75 kW 2.39 Nm 178.3 1.0 kW 3.18 Nm 158.8 198.1 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 85
3.2 Mounting the motor Shaft height 50 mm, with straight connectors Shaft height 50 mm, with angular connectors Rated power Rated torque a 1.5 kW 4.78 Nm 143.5 177.5 2.0 kW 6.37 Nm 167.5 201.5 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 86
Shaft height 45 mm, with the incremental encoder and straight connectors Shaft height 45 mm, with the incremental encoder and angular connectors Rated power Rated torque 0.4 kW 1.27 Nm 154.5 169.5 61.5 0.75 kW 2.39 Nm 201.5 216.5 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 87
Shaft height 45 mm, with the absolute encoder and straight connectors Shaft height 45 mm, with the absolute encoder and angular connectors Rated power Rated torque 0.4 kW 1.27 Nm 203.5 61.5 0.75 kW 2.39 Nm 250.5 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 88
268.5 2.0 kW 9.55 Nm 301.5 The former value indicates the dimension for high inertia motors with straight connectors; the latter value indicates the dimension for high inertia motors with angular connectors. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 89
271.5 2.0 kW 9.55 Nm 304.5 The former value indicates the dimension for high inertia motors with straight connectors; the latter value indicates the dimension for high inertia motors with angular connectors. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 90
Shaft height 90 mm, with the incremental encoder and angular connectors Rated power Rated torque 2.5 kW 11.9 Nm 189.5 210.5 98.5 3.5 kW 16.7 Nm 211.5 236.5 5.0 kW 23.9 Nm 237.5 262.5 7.0 kW 33.4 Nm 289.5 314.5 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 91
Shaft height 90 mm, with the absolute encoder and angular connectors Rated power Rated torque 2.5 kW 11.9 Nm 98.5 3.5 kW 16.7 Nm 5.0 kW 23.9 Nm 7.0 kW 33.4 Nm SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 92: Mounting The Motor
If the motors are used in applications which use oil-containing, creeping and/or aggressive cooling lubricants, you must take additional measures to protect the motors (for example, using suitable covers). SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 93: Attaching Output Elements
Reduce the bending torque load applied to the shaft and the bearing by appropriately arranging the output elements. Mount the output elements as close as possible to the motor bearing. Optimum Unfavorable Low stress on shafts and bearings High stress on shafts and bearings SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 94: Motor Heat Dissipation Conditions
The actual temperature rise depends on how the flange (motor mounting section) is fixed on the installation surface, the material of the motor mounting section, and motor speed. Always check the actual motor temperature. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 95: Connecting
When the equipment is working, hazardous touch current can be present at the PE connectors; if touched, this can result in death or severe personal injury. • Do not touch the PE connector during operation or within a certain period since power disconnection. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 96
For low inertia motors of shaft heights 20 mm, 30 mm and 40 mm, the encoder cable connectors may only be accessible to electrically skilled personnel. Note The mini-USB interface of the SINAMICS V90 PN is used for fast commissioning and diagnostics with SINAMICS V-ASSISTANT installed in the PC. Do not use it for long-term monitoring. -
Page 97: Using Several Single-Phase Converters In Machines And Plants
● To comply with the EMC standards, all cables connected with the SINAMICS V90 system must be shielded cables, which include line supply cables (cables from the line supply to the line filter and from the line filter to the SINAMICS V90 drive), power cable, encoder cable and brake cable.
-
Page 98
1 m. ● The harmonic current value of SINAMICS V90 exceed the class A limit of IEC 61000-3-2, but the SINAMICS V90 system installed within the Category C2 First Environment require supply authority acceptance for connection to the public low-voltage power supply network. -

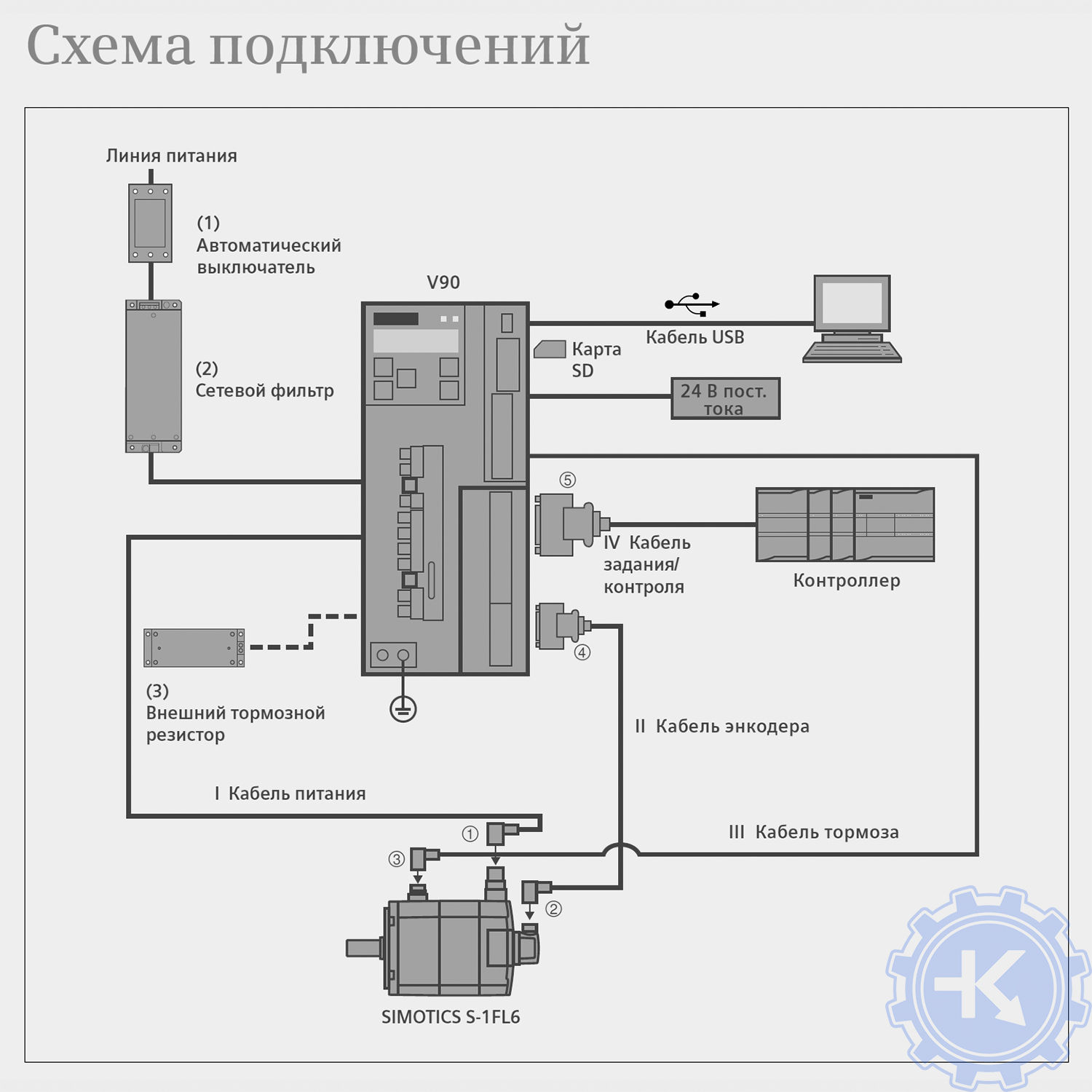

Page 99: System Connection Diagrams
4.1 System connection 4.1.4 System connection diagrams The SINAMICS V90 PN servo drive is integrated with digital input/output interface and PROFINET communication port. It can be connected either to a Siemens controllers like S7- 1200 or S7-1500. The following illustrations show the examples of the SINAMICS V90 PN servo system connection.
-
Page 100
Connecting 4.1 System connection ① ⑩ SINAMICS V90 PN servo drive Micro SD card ② ⑪ Fuse/Type-E combination motor controller Host controller (option) ③ ⑫ Line filter (option) PROFINET I/O cable (20 pins) ④ ⑬ 24 V DC power supply (option) Encoder cable ⑤… -
Page 101
Connecting 4.1 System connection FSD on the three phase power network ① ⑩ SINAMICS V90 PN servo drive Micro SD card ② ⑪ Fuse/Type-E combination motor controller Host controller (option) ③ ⑫ Line filter (option) PROFINET I/O cable (20 pins) ④… -
Page 102
Connecting 4.1 System connection SINAMICS V90 PN 400 V variant FSB on the three phase power network ① ⑨ SINAMICS V90 PN servo drive SD card ② ⑩ Fuse/Type-E combination motor controller (option) Host controller ③ ⑪ Line filter (option) PROFINET I/O cable (20 pins) ④… -
Page 103: Cable Connection
2. Slip the hose clamps over the cable shields and the shielding plate; tighten the screws to press the cable shields onto the shielding plate as well as to fix the grounding lugs. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 104
After connecting the cable to the motor, you can rotate the incremental encoder connector within 270° and rotate the absolute encoder connector within 180°. For other connectors, you can rotate them within 360°. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 105
● For installation on a machine where the servo motor will move, the bending radius should be made as large as possible. Refer to Section «Technical data — cables (Page 69)» for details. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 106: Main Circuit Wiring
The procedure of assembling a line supply cable terminal is the same as that for a power cable terminal on the drive side. For more information, see Section «Assembly of cable terminals/connectors on the drive side (Page 337)». SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 107
The FSB and FSC servo drives are equipped with barrier terminals for line supply connection. You can fix the line supply cable on the servo drives by using the M4 screws with a tightening torque of 2.25 Nm (19.91 lbf.in). SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 108: Motor Power — U, V, W
Low inertia motor, shaft height: 50 mm High inertia motor, shaft height: 45 mm, 60 mm, and 90 mm Straight connectors: Black Phase U Black Phase V Black Phase W Yellow-green Protective earthing Angular connectors: SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 109
• Make sure you first assemble the motor power connector to the drive and tighten the fixing screw on the connector, and then attach the cable to the connector. 200 V variant ● FSA and FSB SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 110
The FSB and FSC servo drives are equipped with barrier terminals for motor power connection. You can fix the motor power cable on the servo drives by using the M4 screws with a tightening torque of 2.25 Nm (19.91 lbf.in). SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 111: Control/Status Interface — X8
Motor holding brake control signal, nega- tive None Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved * The pins are used to connect the brake control signals for 200 V variant drive only. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 112: Digital Inputs/Outputs (Dis/Dos)
DO1 and DO2 by setting the bit 0 and bit 1 of parameter p0748. 4.3.1.1 You can assign a maximum of seven internal digital input signals to the SINAMICS V90 PN servo drive. For detailed information about these signals, see the table below:…
-
Page 113
1: condition for operation • 1→0: quick stop (OFF3) • Wiring The digital inputs support both PNP and NPN types of wirings. You can find detailed information from the following diagrams: NPN wiring PNP wiring SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 114: Dos
Connecting 4.3 Control/status interface — X8 4.3.1.2 You can assign a maximum of 10 internal digital output signals to the SINAMICS V90 PN servo drive. For detailed information about these signals, see the table below: Name Descriptions Servo ready 1: the drive is ready.
-
Page 115
Note: STO_EP is only a status signal for STO input terminals but not a safe DO for the Safety Integrated function. Wiring The digital outputs support both PNP and NPN types of wirings. You can find detailed information from the following diagrams: NPN wiring PNP wiring SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -

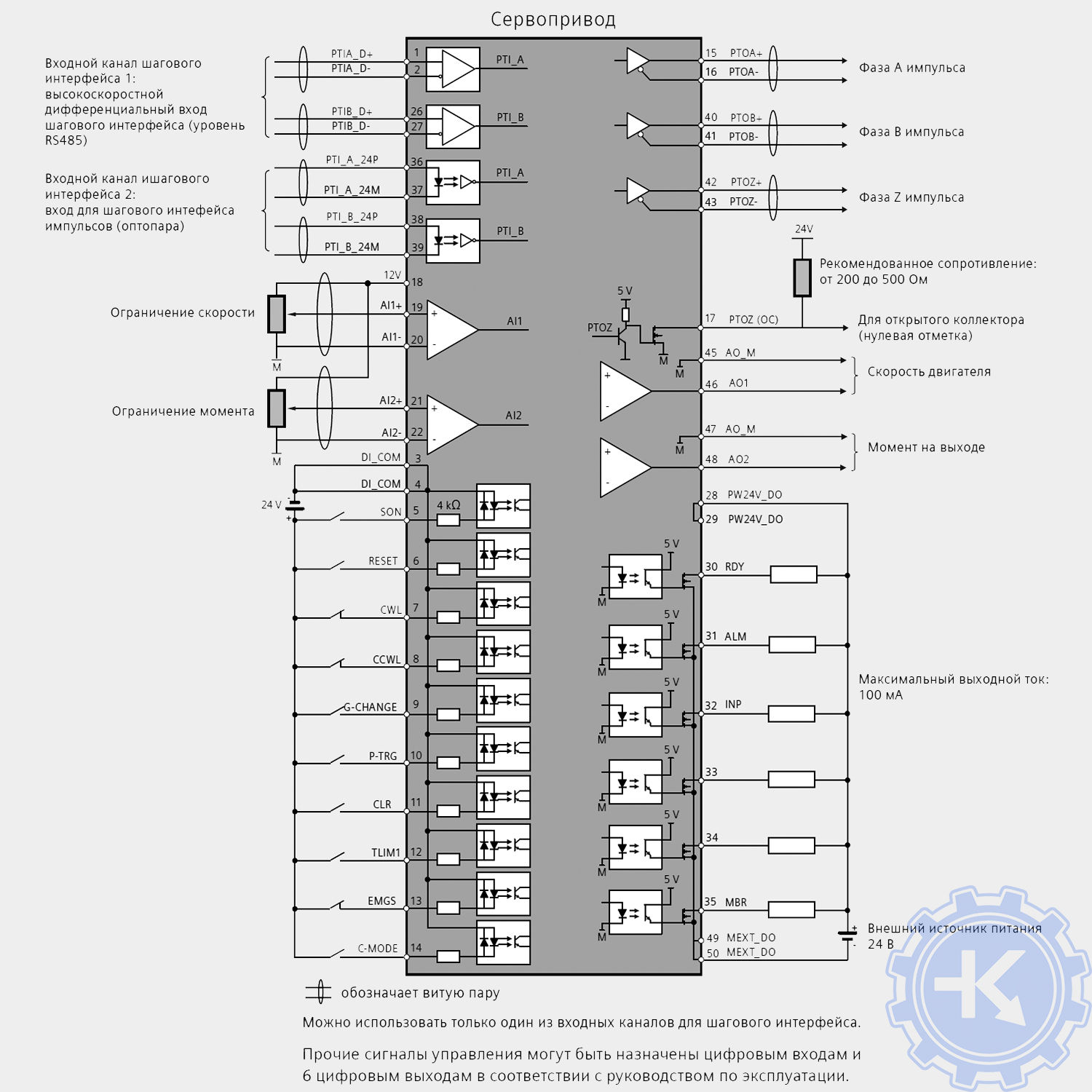

Page 116: Standard Application Wiring (Factory Setting)
Connecting 4.3 Control/status interface — X8 4.3.2 Standard application wiring (factory setting) Example 1 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 117
Digital inputs, supporting both PNP and NPN types. The pins are used to connect the brake control signals for 200 V variant drive only. Re- fer to section «Motor holding brake (Page 124)» for the detailed connections. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 118: Connection Example With Plcs
Connecting 4.3 Control/status interface — X8 4.3.3 Connection example with PLCs 4.3.3.1 SIMATICS S7-1200 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 119: Simatics S7-1500
Connecting 4.3 Control/status interface — X8 4.3.3.2 SIMATICS S7-1500 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 120: Power Supply/Sto
Material damages and personal injuries by the drop of a hanging axis Unexpected drop of the hanging axis can cause material damages and personal injuries. • It is not allowed to use the STO with a hanging axis because the axis may drop. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 121
V90 PN 200 V servo drives. For more information, see Section «Assembly of cable terminals/connectors on the drive side (Page 337)». Plugging the 24 V power supply and STO cables SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 122: Encoder Interface — X9
Connecting 4.5 Encoder interface — X9 Encoder interface — X9 The SINAMICS V90 200 V variant servo drive supports three kinds of encoders: ● Incremental encoder TTL 2500 ppr ● Absolute encoder single-turn 21-bit ● Absolute encoder 20-bit + 12-bit multi-turn The SINAMICS V90 400 V variant servo drive supports two kinds of encoders: ●…
-
Page 123
Phase A+ n. c. Not connected Phase A- Clock_N Inverted clock Phase B+ Data_P Data Phase B- Clock_P Clock Angular con- Phase R+ n. c. Not connected nectors: Phase R- Data_N Inverted data SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 124
Connecting 4.5 Encoder interface — X9 Internal structure of encoder cable 6FX3002-2CT../6FX3002-2DB..Wiring of encoder cable Low inertia motor, shaft-height: 20 mm, 30 mm and 40 mm 6FX3002-2CT20-..6FX3002-2DB20-..SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 125: External Braking Resistor — Dcp, R1
Shielding External braking resistor — DCP, R1 The SINAMICS V90 PN has been designed with an internal braking resistor to absorb regenerative energy from the motor. When the internal braking resistor cannot meet the braking requirements (e.g. the alarm A52901 is generated), you can connect an external braking resistor.
-
Page 126: Motor Holding Brake
Brake- Phase Brake- Low inertia motor, shaft height: 50 mm High inertia motor, shaft height: 45 mm, 65 mm, and 90 mm Straight connectors: Brake+ Phase Brake+ Brake- Phase Brake- Angular connectors: SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 127
Assignment of digital output 1 p29331 1 to 14 9 (OLL) Assignment of digital output 2 Note Refer to Section «Digital inputs/outputs (DIs/Dos) (Page 110)» for detailed information about the digital outputs. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 128
(P24 V) separately to avoid electro-magnetic interference to electronic components. Install a varistor as shown above to suppress the surge voltage or surge current generated by an ON/OFF action of the relay (RY). SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 129
Relay (R) used for the power supply of the brake Siemens recommends you to select a Siemens relay (article number: 3RQ3018-2AB00). You can find more information about Siemens relays from Chapter 05 of Catalog IC 10 — SIRIUS 2016 at the following Web site: Siemens relays (http://w3app.siemens.com/mcms/infocenter/content/en/Pages/order_form.aspx?nodeKey=k… -
Page 130
= motor brake opening time + relay opening time p1217 = motor brake closing time + relay closing time SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 131
Delay time for pulse suppression. The start of the closing time p1217 for the brake depends on the expiration of the shorter of p1227 (zero speed detection monitoring time) and p1228 (pulse suppression delay time). SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 132: Profinet Interface — X150
LED. This allows the following status information about the respective PROFINET port to be displayed: Name Color Status Meaning Link Green Transfer rate 100 Mbit/s No or faulty connection Activity Orange Data exchange No data exchange SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 133
Note When connecting the ports P1 and P2, you need to make sure that the physical input and output connections are the same with the connections in the topology. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 134
Connecting 4.8 PROFINET interface — X150 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 135: Commissioning
• Before starting up the drive with a micro SD card/SD card, check whether the micro SD card/SD card contains user setting data; otherwise, the existing data on the drive might be overwritten. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 136
SINAMICS V-ASSISTANT is a software tool that can be installed on a PC and runs on the Windows operating system. It communicates with the SINAMICS V90 PN servo drive with a USB cable. To ensure the stability of online commissioning, Siemens recommends you to use a shielded USB cable of no longer than 3 m with ferrite cores on both ends (article number: 6SL3255-0AA00-2CA0). -
Page 137: Commissioning In Jog Mode
Is the line supply within the permissible range? • Are all the terminals firmly and correctly connected? • Are all the connected system components well • grounded? Refer to «Connecting (Page 93)». SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 138
When you run the servo motor with an incremental encoder in JOG mode, the servo motor makes a short buzzing sound indicating that it is identifying the magnetic pole position of the rotor. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 139: Commissioning In Basic Positioner Control Mode (Epos)
Velocity (p2585, p2586) • Incremental (p2587, p2588) • Switch on the main line supply. Set up the PROFINET configuration with TIA Portal. Select the telegram for PROFINET communication with parameter p0922. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 140: Commissioning In Speed Control Mode (S)
Send and receive the process data (PZD) with TIA Portal. The actual speed of the servo motor can be viewed from the BOP operating display. The default display is the actual speed. Refer to «Actual status display (Page 146)». SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 141: Basic Operator Panel (Bop)
Basic operator panel (BOP) BOP overview Overview The SINAMICS V90 PN servo drive is designed with a Basic Operator Panel (BOP) on the front panel of the servo drive: You can use the BOP for the following operations: ● Standalone commissioning ●…
-
Page 142: Led Status Indicators
PROFINET communication is working with RT Flash at 2 Hz Micro SD card/SD card operating (read or write) Continuously lit Communication error (always put the PROFINET communica- tion error as the first consideration) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 143: Bop Display
1. xxx.xxx Negative parameter value xxx.xx<> Current display can be moved to left or right xxxx.xx> Current display can be moved to right xxxx.xx< Current display can be moved to left SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 144
The zero position has been set Refer to «Adjusting an absolute encoder (Page 158)». r xxx Actual speed (positive direction) r -xxx Actual speed (negative direction) T x.x Actual torque (positive direction) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 145
The communication between the commissioning tool SINAMICS V- ASSISTANT and the servo drive is established. In this case, the BOP is protected from any operations except clearing alarms and ac- knowledging faults. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 146: Control Buttons
Moves current display to the left page when is displayed at the upper right corner, for example Moves current display to the right page when is displayed at the lower right corner, for example SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 147: Parameter Structure
Basic operator panel (BOP) 6.2 Parameter structure Parameter structure The overall parameter structure of SINAMICS V90 PN BOP is designed as follows: SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 148: Actual Status Display
With p29002, you define which of the following drive operating status data is to be displayed on the BOP: Parameter Value Meaning p29002 0 (default) Actual speed DC voltage Actual torque Actual position Position following error Note Make sure you save p29002 after modification. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 149: Basic Operations
You can only read values of these parameters. Parameters with index Some parameters have several indices. Each index has its own meaning and corresponding value. Parameters without index All parameters that do not have indices are parameters without index. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 150: Editing Parameters
Basic operator panel (BOP) 6.4 Basic operations 6.4.1 Editing parameters You can edit a parameter value in two methods: ● Method 1: change the value directly with the UP or DOWN button SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 151
● Method 2: move the cursor to a digit with the SHIFT button, then change the digit value with the UP or DOWN button Note Parameters p1414 and p1656 cannot be changed using the SHIFT button. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 152: Viewing Parameters
If you do not know which group that a parameter belongs to, you can search for in the «P ALL» menu. Note Invalid parameter number If the input parameter number is unavailable, the nearest parameter number to the input value is displayed. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 153: Auxiliary Functions
Adjust absolute encoder NOTE: This function is available only when the servo motor with an absolute encoder is connected. ④ Copy parameter set from a drive to a mi- cro SD card/SD card SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 154: Jog
To run the connected motor with the JOG function and view the JOG torque, proceed as follows: JOG in torque (example) NOTICE Exit the JOG mode after completing JOG run. The servo motor cannot run if the servo drive is in the JOG mode. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 155: Saving Parameters (Ram To Rom)
• If a micro SD card/SD card has been inserted, the parameter set will be saved onto the micro SD card/SD card simultaneously. • All signal functions become inactive during the saving process. Use the signal functions afterwards. Reference Editing parameters (Page 148) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 156: Setting Parameters To Default
You must save the parameter set after setting the parameter set to the default values; otherwise, the default values will not be saved to drive ROM. Reference Saving parameters (RAM to ROM) (Page 153) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 157: Transferring Data (Drive To Sd)
Do not plug or unplug the micro SD card/SD card during transferring; otherwise, the transferring operation will fail. Note Write protection function is not supported by SINAMICS V90 PN. Data in the micro SD card/SD card will be overwritten even if the write protection function of the micro SD card/SD card is enabled.
-
Page 158: Transferring Data (Sd To Drive)
Note Parameter inconsistency If the parameters on the micro SD card/SD card are inconsistent with existing parameters in the drive memory, you must restart the servo drive to apply the changes. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 159: Updating Firmware
Note Update the firmware by restarting the drive. After inserting the micro SD card/SD card with proper firmware files, you can also update the firmware by restarting the drive. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 160: Adjusting An Absolute Encoder
With the BOP function menu «ABS», you can set the current position of an absolute encoder to the zero position. To do this, proceed as follows: Note Save parameter The position value is set in parameter p2525. You must save the parameters after setting the zero position. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 161: Control Functions
Parame- Value Description Setpoint Positive Negative p29001 CW is forward direction Analog monitoring: Analog monitoring: • • (factory setting) CCW is forward direc- Analog monitoring: Analog monitoring: • • tion SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 162: 300% Overload Capacity
Control functions 7.1 General functions 7.1.2 300% overload capacity SINAMICS V90 servo drives can work with 300% overload capacity for a specific time period. The following diagrams show in details: 200 V variant servo drive Without load With load 400 V variant servo drive…
-
Page 163
Servo motor is ready to run. Quick stop. For detailed information about the PROFINET control word and the digital input signal EMGS, refer to Section «Control word definition (Page 210)» and «Digital inputs/outputs (DIs/Dos) (Page 110)». SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 164: Travel To Fixed Stop
Function behavior in speed (S) control mode When SINAMICS V90 PN is working in the speed (S) control mode, the «travel to fixed stop» function can be used in all the telegrams except the standard telegram 1, because the function through telegram is part of STW2 and ZSW2 and they are not included in standard telegram 1.
-
Page 165
– In this example, the active torque limit is the internal torque limit TLM (torque limit = 300% × rated torque) – MOMRED = 3600 hex (13824 dec) Actual torque limit value = 300% × 1.27 Nm × (1 — 13824/16384) = 0.5953 Nm SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 166
The preset acceleration and deceleration overrides and the current speed override are also effective. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 167
(position setpoint = actual position value). Fixed stop monitoring and controller enable are active. Note If the drive is in fixed stop, it can be referenced using the control signal «Set reference point». SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 168
3. Configure the traversing task to be «FIXED STOP». p2621[0] = 2 4. Set the torque limit to 0.1 Nm. p2622[0] = 10 5. Set the maximum following error by p2634 and the monitoring window by p2635. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 169: Position Tracking
7.1 General functions 6. Perform referencing. Note: When the SINAMICS V90 PN is working in EPOS traversing block mode, referencing must be performed before moving the axis. 7. After the drive performs referencing successfully, trigger traversing block 0 by control word STW1.6.
-
Page 170
● If you activate the position tracking function (p29243 = 1), and set the virtual multi-turn p29244 = 24, and the gear ratio p29248/p29249 = 1, the position for +/- 12 encoder revolutions (+/- 12 load revolutions with load gear) can be reproduced. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 171
= (p29244 × 29247)/p29246 Example ● Gear ratio = p29248 : p29249 = 1 : 3 ● The absolute encoder can count eight encoder revolutions ● The position tracking function is deactivated (p29243 = 0) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 172
Overview of important parameters Position tracking activate • p29243 Absolute encoder virtual rotary revolutions • p29244 Mechanical gear: Numerator • p29248 Mechanical gear: Denominator • p29249 LR position actual value • r2521[0] SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 173: Basic Positioner (Epos)
N times accordingly. Otherwise, the fault F7450 or F7452 occurs. Relevant parameters Parameter Range Factory setting Unit Description p29247 1 to 2147483647 10000 LU per load revolution p29248 1 to 1048576 Load revolutions p29249 1 to 1048576 Motor revolutions SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 174: Configuring The Linear/Modular Axis
You can choose to use a linear axis or a modular axis depending on your actual application. The linear axis has a restricted traversing range, which is the factory setting of the SINAMICS V90 PN servo drive. The modular axis has an unrestricted traversing range. The value range of the position repeats itself after a value is specified in p29246.
-
Page 175: Backlash Compensation
Set signal source for start direction of searching cam: 0: start in positive direction • 1: start in negative direction • When telegram 111 is used, the value of p2604 is assigned by control word POS_STW2.9. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 176: Over-Travel
• In EPOS control mode, the motor cannot rotate with F7491/F7492 being triggered again, if you only acknowledge the fault without returning the axis to a position within the valid traversing range. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 177
When either of signals CWL and CCWL is not assigned to any DI, the signal will be at a high level automatically. Note DI parameterization Refer to Section «Digital inputs/outputs (DIs/Dos) (Page 110)» for detailed information about DI parameterization. Refer to Chapter «Parameters (Page 263)» for detailed information about parameters. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 178: Software Position Limit
Activation of software limit switch: 0: deactivate • 1: activate • 7.2.6 Speed limit Refer to Section «Speed limit (Page 199)» for details. 7.2.7 Torque limit Refer to Section «Torque limit (Page 200)» for details. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 179: Referencing
Starting referencing by PROFINET When using the telegrams 7, 9, 110, and 111, you can start referencing by configuring the PROFINET control word STW1.11: Control word Setting Description STW1.11 Start referencing. Stop referencing. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 180: Setting Reference Point With The Digital Input Signal Ref (P29240 = 0)
The current position is set to zero at a rising edge of the signal REF and the servo drive is referenced: CAUTION The referencing point may not be fixed during referencing The servo motor must be in «servo on» state so that the referencing point is fixed during referencing. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 181: Referencing With The External Reference Cam (Signal Ref) And Encoder Zero Mark (P29240 = 1)
When the servo motor reaches the reference point (p2599), the signal REFOK is output (0→1). Set STW1.11 to 0 and the referencing finishes successfully. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 182
When telegram 111 is used, the value of p2604 is assigned by control word POS_STW2.9. 2. Configure signal REF if telegrams 7 and 9 are used. Refer to Section «Digital inputs/outputs (DIs/Dos) (Page 110)» for reference. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 183
When the servo motor reaches the reference point (p2599), the signal REFOK is output (0→1). Set STW1.11 to 0 and the referencing finishes successfully. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 184
Speed for searching the cam (p2605) ② Speed for searching zero mark (p2608) ③ Speed for searching reference point (p2611) The running direction when travelling to the zero mark is opposite to the direction defined in p2604 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 185
Speed for searching the cam (p2605) ② Speed for searching zero mark (p2608) ③ Speed for searching reference point (p2611) The running direction when traveling to the zero mark is the direction defined in p2604 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 186
During the referencing, if STW1.11 is set to 0, the referencing stops. 5. After the servo motor reaches the reference point, the signal REFOK (ZSW1.11) is output (0→1). 6. Set control word STW1.11 to 0, and the referencing finishes successfully. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 187: Referencing With The Encoder Zero Mark Only (P29240 = 2)
(p2599), the signal REFOK is output (0→1). Set control word STW1.11 to 0 and the referencing finishes successfully. ① Speed for searching zero mark (p2608) ② Speed for searching reference point (p2611) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 188
When the servo motor reaches the reference point (p2599), the signal REFOK is output (0→1). Set control word STW1.11 to 0 and the referencing finishes successfully. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 189
Speed for searching zero mark (p2608) ② Speed for searching reference point (p2611) The searching direction against the reference cam ① Speed for searching zero mark (p2608) ② Speed for searching reference point (p2611) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 190
During the referencing, if STW1.11 is set to 0, the referencing stops. 4. After the servo motor reaches the reference point, the signal REFOK (ZSW1.11) is output (0→1). 5. Set control word STW1.11 to 0, and the referencing finishes successfully. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 191: Traversing Blocks
Activating a traversing task When telegrams 7, 9, 110, and 111 are used, activate a traversing task with the PROFINET control word STW1.6: Control word Setting Description STW1.6 Traversing task activation. Traversing task deactivation. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 192
This is the same as CONTINUE_EXTERNAL_WAIT, except that alarm A07463 «External traversing block change in traversing block x not requested» is output when «External block change» is not triggered by the time the drive comes to a standstill. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 193
The FIXED STOP task triggers a traversing movement with reduced torque to fixed stop. The following parameters are relevant: ● p2616[x] Block number ● p2617[x] Position ● p2618[x] Velocity ● p2619[x] Acceleration override ● p2620[x] Deceleration override SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 194
The following parameters are relevant: ● p2622[x] Task parameter = delay time in milliseconds ≥ 0 ms, but is rounded-off to a multiple of numeral 8 ● p2623[x] Task mode SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 195
When telegrams 7, 9, 110, and 111 are used, reject a traversing task with the PROFINET control word STW1.4: Control word Setting Description STW1.4 Do not reject a traversing task. Reject a traversing task (ramp-down with the maximum deceleration). SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 196: Direct Setpoint Input (Mdi)
When telegrams 7, 9, and 110 are used, the direct setpoint input function can be configured with the PROFINET control word SATZANW.15: Control word Setting Description SATZANW.15 MDI selection. Traversing block selection. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 197
POS_STW1.9 and POS_STW1.10: Control word Setting Description POS_STW1.9 Absolute positioning through the shortest distance. POS_STW1.10 Absolute positioning/MDI direction selection, positive. Absolute positioning/MDI direction selection, negative. Absolute positioning through the shortest distance. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 198
POS_STW1.12: Control word Setting Description POS_STW1.12 Continuous transfer. Activate MDI block change with of a traversing task (STW1.6). Note When telegrams 7, 9, and 110 are used, a rising edge is fixed. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 199
MDI velocity, fixed setpoint • p2691 MDI acceleration override, fixed setpoint • p2692 MDI deceleration override, fixed setpoint • p2693 For more information about the parameters above, see Section «Parameter list (Page 264)». SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 200: Ejog
When telegrams 7 and 9 are used, set the following jogging setpoint with the appropriate parameters: ● Velocity (p2585, p2586) When telegrams 110 and 111 are used, set the following jogging setpoints with the appropriate parameters: ● Velocity (p2585, p2586) ● Incremental (p2587, p2588) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 201: Speed Control (S)
(Page 309)» for information about the acknowledgment of this fault. Refer to «DIs (Page 110)» for more information about the digital input signal SLIM. Overall speed limit Besides the above two channels, an overall speed limit is also available. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 202: Torque Limit
Note You can switch between the two sources and modify their values when the servo drive is running. Refer to «DIs (Page 110)» for more information about the digital input signal TLIM. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 203
The following diagram shows how the internal torque limit functions: Torque limit reached (TLR) When the generated torque has nearly (internal hysteresis) reached the value of the positive torque limit or negative torque limit, the signal TLR is output. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 204: Ramp-Function Generator
● the acceleration (p1120) and deceleration (p1121) ramps ● the initial (p1130) and final (p1131) rounding-off times You can see the properties of the S-curve ramp-function generator from the diagram below: SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 205
0 to 999999 Ramp-function generator ramp-up time p1121 0 to 999999 Ramp-function generator ramp-down time p1130 0 to 30 Ramp-function generator initial rounding-off time p1131 0 to 30 Ramp-function generator final rounding-off time SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 206
Control functions 7.3 Speed control (S) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 207: Profinet Communication
100 ms. Supported telegrams SINAMICS V90 PN supports standard telegrams and Siemens telegrams for speed control mode and basic positioner control mode. From the perspective of the drive unit, the received process data represents the receive words and the process data to be sent represents the send words.
-
Page 208
One PZD = one word Standard telegram 5 and Siemens telegram 105 can only be used when the V90 PN connects to the SIMATICS S7-1500 and the TIA Portal version is V14 or higher. The supplementary telegram can only be used together with a main telegram. It cannot be used sepa- rately. -
Page 209
PZDs of the main telegram. Note When you use the telegram 750 in the application of rewinding and unwinding, the built-in braking resistor of the drives is not sufficient to absorb the excess regenerative energy. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 210: I/O Data Signals
Send word 4000 hex ≙ p2000 NIST_B Speed actual value B (32 bit) Send word 40000000 hex ≙ p2000 G1_STW Encoder 1 control word Receive word G1_ZSW Encoder 1 status word Send word SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 211
When you use the auto-tuning function, values of the torque feedforward and speed feedforward can be overwritten after the tuning function is enabled. If you want to use functions of the torque feedforward and speed feedforward, you need to set their values to the required values again. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 212: Control Word Definition
0 = Inhibit setpoint (set the ramp-function generator input to zero) STW1.7 = 1. Acknowledge faults STW1.8 Reserved STW1.9 Reserved STW1.10 1 = Control via PLC STW1.11 1 = Setpoint inversion STW1.12 Reserved STW1.13 Reserved STW1.14 Reserved STW1.15 Reserved SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 213: Stw2 Control Word (For Telegrams 2, 3, 5)
1 = No OFF3 (enable is possible) 0 = OFF3 (braking with the OFF3 ramp p1135, then pulse suppression and switching on inhibited) STW1.3 1 = Enable operation (pulses can be enabled) 0 = Inhibit operation (suppress pulses) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 214: Stw2 Control Word (For Telegrams 102, 105)
1 = Traverse to fixed endstop STW2.9 Reserved STW2.10 Reserved STW2.11 Reserved STW2.12 Master sign-of-life, bit 0 STW2.13 Master sign-of-life, bit 1 STW2.14 Master sign-of-life, bit 2 STW2.15 Master sign-of-life, bit 3 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 215: Stw1 Control Word (For Telegrams 7, 9, 110, 111)
1 = Jog 2 signal source STW1.10 1 = Control via PLC STW1.11 1 = Start referencing 0 = Stop referencing STW1.12 Reserved STW1.13 = External block change STW1.14 Reserved STW1.15 Reserved SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 216: Stw2 Control Word (For Telegrams 9, 110, 111)
1 = Traverse to fixed endstop STW2.9 Reserved STW2.10 Reserved STW2.11 Reserved STW2.12 Master sign-of-life, bit 0 STW2.13 Master sign-of-life, bit 1 STW2.14 Master sign-of-life, bit 2 STW2.15 Master sign-of-life, bit 3 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 217: G1_Stw Encoder 1 Control Word
Reserved G1_STW.10 Reserved G1_STW.11 Reserved G1_STW.12 Reserved G1_STW.13 1 = Request value cyclic transfer of the absolute position value in Gn_XIST2 G1_STW.14 1 = Request parking encoder G1_STW.15 = Acknowledge encoder fault SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 218: Satzanw Control Word
3 = Absolute positioning through the shortest distance MDI_MOD.3 Reserved MDI_MOD.4 Reserved MDI_MOD.5 Reserved MDI_MOD.6 Reserved MDI_MOD.7 Reserved MDI_MOD.8 Reserved MDI_MOD.9 Reserved MDI_MOD.10 Reserved MDI_MOD.11 Reserved MDI_MOD.12 Reserved MDI_MOD.13 Reserved MDI_MOD.14 Reserved MDI_MOD.15 Reserved SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 219: Pos_Stw Control Word
POS_STW.11 Reserved POS_STW.12 Reserved POS_STW.13 Reserved POS_STW.14 Reserved POS_STW.15 Reserved Note If the tracking mode is activated, the position setpoint follows the actual position value, i.e. position setpoint = actual position value. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 220: Pos_Stw1 Positioning Control Word
1 = Continuous transfer 0 = Activate MDI block change with of a traversing task (STW1.6) POS_STW1.13 Reserved POS_STW1.14 1 = Signal setting-up selected 0 = Signal positioning selected POS_STW1.15 1 = MDI selection SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 221: Pos_Stw2 Positioning Control Word
1 = Software limit switch activation POS_STW2.15 1 = STOP cam active Note If the tracking mode is activated, the position setpoint follows the actual position value, i.e. position setpoint = actual position value. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 222: Status Word Definition
1 = Traverse to fixed endstop ZSW2.9 Reserved ZSW2.10 1 = Pulses enabled ZSW2.11 Reserved ZSW2.12 Slave sign-of-life, bit 0 ZSW2.13 Slave sign-of-life, bit 1 ZSW2.14 Slave sign-of-life, bit 2 ZSW2.15 Slave sign-of-life, bit 3 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 223: Zsw1 Status Word (For Telegrams 102, 105)
1 = Traverse to fixed endstop ZSW2.9 Reserved ZSW2.10 Reserved ZSW2.11 Reserved ZSW2.12 Slave sign-of-life, bit 0 ZSW2.13 Slave sign-of-life, bit 1 ZSW2.14 Slave sign-of-life, bit 2 ZSW2.15 Slave sign-of-life, bit 3 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 224: Zsw1 Status Word (For Telegrams 7, 9, 110, 111)
1 = Traverse to fixed endstop ZSW2.9 Reserved ZSW2.10 1 = Pulses enabled ZSW2.11 Reserved ZSW2.12 Slave sign-of-life, bit 0 ZSW2.13 Slave sign-of-life, bit 1 ZSW2.14 Slave sign-of-life, bit 2 ZSW2.15 Slave sign-of-life, bit 3 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 225: G1_Zsw Encoder 1 Status Word
Reserved G1_ZSW.11 1 = Acknowledge encoder fault active G1_ZSW.12 Reserved (for reference point offset) G1_ZSW.13 Absolute value is cyclically transferred G1_ZSW.14 Parking encoder active G1_ZSW.15 Encoder fault, the fault is in Gn_XIST2 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 226: Meldw Status Word
1 = Jogging active POS_ZSW1.11 1 = Reference point approach active POS_ZSW1.12 Reserved POS_ZSW1.13 1 = Traversing Block active POS_ZSW1.14 1 = Set-up active POS_ZSW1.15 1 = MDI active 0 = MDI inactive SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 227: Pos_Zsw2 Positioning Status Word
1 = Direct output 2 via traversing block POS_ZSW2.12 1 = Fixed stop reached POS_ZSW2.13 1 = Fixed stop clamping torque reached POS_ZSW2.14 1 = Travel to fixed stop active POS_ZSW2.15 1 = Traversing command active SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 228
PROFINET communication 8.4 Status word definition SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 229: Safety Integrated Function
For example, the control system for a machine that is to be used in the US must fulfill local US requirements even if the machine manufacturer (OEM) is based in the European Economic Area (EEA). SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 230: Functional Safety
The basic safety and health requirements specified in Annex I of the Directive must be fulfilled for the safety of machines. The protective goals must be implemented responsibly to ensure compliance with the Directive. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 231: Harmonized European Standards
C standards are product-specific standards (e.g. for machine tools, woodworking machines, elevators, packaging machines, printing machines etc.). Product standards cover machine- specific requirements. The requirements can, under certain circumstances, deviate from the SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 232: Standards For Implementing Safety-Related Controllers
EN ISO 13849-1 or EN 62061 should be applied depending on the technology (mechanics, hydraulics, pneumatics, electrics, electronics and programmable electronics), risk classification and architecture. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 233: Din En Iso 13849-1
The standard describes how the performance level (PL) is calculated for safety-related components of the controller on the basis of designated architectures. In the event of any deviations from this, EN ISO 13849-1 refers to EN 61508. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 234
For electromechanical devices, a manufacturer specifies a failure rate λ with reference to the number of operating cycles. The failure rate per unit time and the lifetime must be determined using the switching frequency for the particular application. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 235: Series Of Standards En 61508 (Vde 0803)
● A harmonized European standard (e.g. EN 62061, EN ISO 13849, EN 60204-1) references EN 61508. This ensures that the appropriate requirements of the directives are fulfilled («standard that is also applicable»). When manufacturers apply EN 61508 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 236: Risk Analysis/Assessment
A decision must be made here as to whether the residual risk needs to be reduced. If the risk is to be further reduced, suitable protective measures must be selected and applied. The risk assessment must then be repeated. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 237: Risk Reduction
The required SIL is also determined in accordance with the risk assessment principle according to ISO 12100 (EN 1050). Annex A of the standard describes a method for determining the required Safety Integrity Level (SIL). SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 238: Residual Risk
«forced» to fulfill the requirement to use state-of-the-art technology. Third-party insurance companies generally demand that their customers fulfill the applicable standards of the standards organizations. Self-insured companies are not initially subject to SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 239: Nrtl Listing
Internet at the following address: http://www.ul.com → certifications directory → UL Category code/ Guide information → search for category «NRGF» TUV Rheinland of North America, Inc. is also an NRTL for these applications. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 240: Ansi B11
Instead of legal requirements to apply standards have been defined, an administrative recommendation to apply JIS (Japanese Industrial Standard) is in place: Japan bases its approach on the European concept and uses basic standards as national standards (see table). SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 241: Equipment Regulations
1:2015, as well as IEC 61800-5-2. Controlling the STO Function The STO function can be controlled via terminals. For the details about STO wiring, refer to the chapter «24 V power supply/STO (Page 118)». SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 242: System Features
● Performance Level (PL) d to ISO 13849-1:2015 ● Safety integrity level 2 (SIL 2) to IEC 61508 In addition, the safety function of SINAMICS V90 PN has been certified by independent institutes. An up-to-date list of certified components is available on request from your local Siemens office.
-
Page 243
• When the safety function is deactivated, an automatic restart is permitted under certain circumstances depending on the risk analysis (except when Emergency Stop is reset). For example, an automatic start is permitted when a protective door is closed. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 244: Probability Of Failure Of The Safety Function
Hardware fault tolerance (HFT) The HFT value of SINAMICS V90 PN drive system is one. It means that the system can handle one fault without brake down. SINAMICS V90 PN STO function is a subsystem from type A, and only the discrete components are involved in the STO function.
-
Page 245: Residual Risk
● This function is integrated in the drive; this means that a higher-level controller is not required. ● The function is drive-specific, i.e. it is available for each drive and must be individually commissioned. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 246
If the input signal contains pluses whose high level duration are less than 500 ms, you need to decrease the sensitivity of the STO sensor or filter the input pulses by a PLC program or by a physical filter. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 247
For 200 V variant servo drives, the STO response time in the worst case is 15 ms. For 400 V variant servo drives, the STO response time in the worst case is 5 ms. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 248: Forced Dormant Error Detection
The timer will be reset if the associated forced dormant error detection is executed. The corresponding alarm is not triggered. The forced dormant error detection procedure of Safety Function (STO) always has to be executed through the terminals. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 249: Tuning
Current loop > speed loop > position loop Since the current loop of SINAMICS V90 PN servo drive already has a perfect frequency width, it is only necessary for you to adjust the speed loop gain and the position loop gain.
-
Page 250
You can slowly adjust the position loop feed forward gain. The effect of feed forward function is not obvious if the position loop gain is too big. Parameter Value range Default value Unit Description p29111 0 to 200 Speed pre-control factor (feed forward) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 251: Tuning Mode
The tuning function only uses the first group of servo gains (position loop gain 1, speed loop gain 1 and speed loop integral time 1). The following tuning functions are available for the SINAMICS V90 PN servo drive. Select a tuning mode by setting parameter p29021:…
-
Page 252: One-Button Auto Tuning
– For the motor with an absolute encoder: position limitation is defined by p29027 – For the motor with an incremental encoder: the motor must be allowed to rotate freely about two rounds when tuning starts SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 253
Tuning 10.3 One-button auto tuning One-button auto tuning procedure Proceed as follows to perform one-button auto tuning for the SINAMICS V90 PN servo drive. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 254
Higher dynamic factor means higher tracking ability and shorter settling time but also higher possibility of resonance. You should find a desired dynamic factor within a resonance-free range. A total of 35 dynamic factors are available for the SINAMICS V90 PN servo drive: Dynamic factor (p29020) Machine rigidity ↑… -
Page 255
Current setpoint filter 1 denominator damping p2533 0 to 1000 LR position setpoint filter time constant p2572 1 to 2000000 100 1000 EPOS maximum acceleration LU/s p2573 1 to 2000000 100 1000 EPOS maximum deceleration LU/s SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 256
One-button auto tuning may cause some changes of the control parameters. When the system rigidity is low, this may lead to a situation that when you set EMGS = 0, the motor needs take long time to stop. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 257: Real-Time Auto Tuning
● Make sure that the motor has multiple accelerations and decelerations. Step command is recommended. ● Machine resonance frequency changes when the machine is running. Real-time auto tuning procedure Proceed as follows to perform real-time auto tuning for the SINAMICS V90 PN servo drive. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 258
Higher dynamic factor means higher tracking ability and shorter settling time but also higher possibility of resonance. You should find a desired dynamic factor within a resonance-free range. 35 dynamic factors are available for the SINAMICS V90 PN servo drive: Dynamic factor (p29020) Machine rigidity ↑… -
Page 259
In such cases, use the one-button auto tuning or manual tuning to optimize the drive. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 260: Manual Tuning
● p29021 = 0: auto tuning function is disabled without changing control parameters. Procedure for manual tuning Follow the procedure below to perform manual tuning: Note Resonance suppression For detailed information about the resonance suppression, refer to Section «Resonance suppression (Page 259)». SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 261: Resonance Suppression
Now four current setpoint filters are available for the V90 PN servo drive. Filter 1 is lowpass filter. Filter 2, filter 3 and filter 4 are band damp filters. The gain decreasing frequency, width as well as depth can be set by setting the notch filter: SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 262
Notch filter remains active when the resonance suppression function is activated automatically. After one-button tuning is completed, four filters can be activated at most. You can deactivate the notch filters by setting the parameter p1656. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 263
, notch width is f , and notch depth is K, then the filter parameters can be calculated as follows: p1663=p1665=f p1664=f / (2 × f p1666=(f × 10 )/ (2 × f (k/20) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 264: Low Frequency Vibration Suppression
Set the control mode for the drive by p29003. ⑥ Enable the vibration suppression function by Set p29035 = 1 to activate the function. p29035. ⑦ Set the drive to «servo on» state. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 265: Parameters
Parameters 11.1 Overview The section below lists all the parameters of the SINAMICS V90 PN servo drive. Parameter number Numbers prefixed with an «r» indicate that parameter is a read-only parameter. Numbers prefixed with a «p» indicate that the parameter is an editable parameter.
-
Page 266: Parameter List
Parameters 11.2 Parameter list Parameter groups The SINAMICS V90 PN parameters are divided into the following groups: Parameter group Available parameters Parameter group display on the BOP Basic parameters p07xx, p10xx to p16xx, p21xx Application parameters p29xxx Communication parameters p09xx, p89xx…
-
Page 267
2: Standard telegram 2, PZD-4/4 • 3: Standard telegram 3, PZD-5/9 • 5: Standard telegram 5, PZD-9/9 • 102: SIEMENS telegram 102, PZD-6/10 • 105: SIEMENS telegram 105, PZD-10/10 • For basic positioner control mode: 7: Standard telegram 7, PZD-2/2 •… -
Page 268
When saving, only the adjustable parameters intended to be saved are taken into account. Value = 0: Inactive • Value = 1: Save in non-volatile memory — downloaded at POWER ON • SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 269
Effective: IM Can be changed: T, U Description: The ramp-function generator ramps-up the speed setpoint from standstill (setpoint = 0) up to the maximum speed (p1082) in this time. Dependency: Refer to p1082 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 270
Note: For a motor with integrated brake, this time is pre-assigned the value saved in the motor. For p1216 = 0 ms, the monitoring and the message A7931 «Brake does not open» are deactivated. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 271
Notice: The setpoint is not equal to zero dependent on the selected value. This can therefore cause the monitoring time in p1227 to be exceeded. In this case, for a driven motor, the pulses are not sup- pressed. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 272
0: Low pass filter PT1 • 1: Low pass filter PT2 • 2: General 2 order filter • Dependency: PT1 low pass filter: p1416 PT2 low pass filter: p1417, p1418 General filter: p1417 … p1420 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 273
0: Low pass filter PT1 • 1: Low pass filter PT2 • 2: General 2 order filter • Dependency: PT1 low pass filter: p1422 PT2 low pass filter: p1423, p1424 General filter: p1423 … p1426 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 274
For interpolation axes, the value of p1433 needs to be set to a same value manually. p1441 Actual speed smoothing time Min: 0.00 Max: 50.00 Factory setting: 0.00 Unit: ms Data type: Float Effective: IM Can be changed: T, U SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 275
Can be changed: T, U Description: Sets the denominator natural frequency for current setpoint filter 1 (PT2, general filter). Dependency: The current setpoint filter 1 is activated via p1656.0 and parameterized via p1658 … p1659. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 276
Can be changed: T, U Description: Sets the numerator natural frequency for current setpoint filter 3 (general filter). Dependency: Current setpoint filter 3 is activated via p1656.2 and parameterized via p1668 … p1671. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 277
Description: Sets the reference quantity for currents. All currents specified as relative value are referred to this reference quantity. The reference quantity corresponds to 100% or 4000 hex (word) or 4000 0000 hex (double word). SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 278
The message type can only be changed for messages with the appropriate identification (exception, value = 0). Example: F12345(A): Fault F12345 can be changed to alarm A12345. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 279
LR position setpoint filter time constant Min: 0.00 Max: 1000.00 Factory setting: 0.00 Unit: ms Data type: Float Effective: IM Can be changed: T, U Description: Sets the time constant for the position setpoint filter (PT1). SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 280
After the positioning monitoring time expires, it is checked once as to whether the difference between the setpoint and actual position lies within the positioning window and if required an appropriate fault is output. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 281
Max: 2000000 Factory setting: 100 Unit: 1000 LU/s Data type: U32 Effective: IM Can be changed: T Description: Sets the maximum deceleration for the «basic positioner» function (EPOS). Dependency: Refer to: p2620 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 282
Description: Sets the signal source to activate the «software limit switch». Dependency: Refer to p2580, p2581 Caution: Software limit switch effective: Axis is referenced. • Software limit switch ineffective: Modulo correction active. • Search for reference is executed. • SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 283
Unit: 1000 Min: -40000000 Max: 40000000 Factory setting: 300 LU/min Data type: I32 Effective: IM Can be change: T, U Description: Sets the setpoint speed for jog 2. Dependency: Refer to: p2588 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 284
Factory setting: 2147482647 Unit: LU Data type: U32 Effective: IM Can be changed: T, U Description: Sets the maximum distance after the start of the search for reference when traversing to the reference cam. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 285
Can be changed: T, U Description: Sets the velocity for the traversing block. Dependency: Refer to: p2617, p2619, p2620, p2621, p2622, p2623 Note: The velocity can be influenced using the velocity override. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 286
JERK: 0 — deactivate, 1 — activate p2623[0…15] EPOS traversing block task mode Min: 0 Max: 65535 Factory setting: 0 Unit: — Data type: U16 Effective: IM Can be changed: T, U SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 287
MDI acceleration override, fixed setpoint Min: 0.100 Max: 100.000 Factory setting: 100.000 Unit: % Data type: Float Effective: IM Can be changed: T, U Description: Sets a fixed setpoint for the acceleration override. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 288
Description: Sets the subnet mask for the onboard PROFINET interface on the Control Unit. The active subnet mask is displayed in r8933. Note: The interface configuration (p8920 and following) is activated with p8925. The parameter is not influenced by setting the factory setting. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 289
Min: 1 Max: 100 Factory setting: 100 Unit: % Data type: Float Effective: IM Can be changed: T Description: Alarm triggering threshold for the capacity of the internal braking resistor. Alarm number: A52901 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 290
The time in p29028 should be set according to the axis with the lowest dynamic response. p29024 Tuning: Real-time auto tuning configuration Min: 0000 hex Max: FFFF hex Factory setting: 004C hex Unit: — Data type: U16 Effective: IM Can be changed: T SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 291
Working with the 400 V drives – Working in all control modes except for the S control mode (p29003 ≠ 2). You can set the bit 4 of p29025 manually in all control modes. • SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 292
Can be changed: T, U Description: Positive torque limit. Two internal torque limits in total are available. You can select the internal parameters as the source of the torque limit with the digital input signals TLIM. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 293
G-CHANGE or setting relevant condition parameters. The first position loop gain is the default setting. Dependency: The parameter value will be set to default after configuring a new motor ID (p29000). SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 294
1: Activates the function of setting the EPOS reference point coordinate value via the PZD user2 • p29230 MDI direction selection Min: 0 Max: 2 Factory setting: 0 Unit: — Data type: I16 Effective: IM Can be changed: T SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 295
Axis mode state Min: 0 Max: 1 Factory setting: 0 Unit: — Data type: U32 Effective: IM Can be changed: T Description: Linear/modulo mode: 0: Linear axis • 1: Modulo axis • SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 296
Digital input 4 assignment Min: 0 Max: 29 Factory setting: 0 Unit: — Data type: I16 Effective: IM Can be changed: T Description: Defines the function of digital input signal DI4 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 297
The default value is automatically adjusted with the encoder type. p31581 VIBSUP filter type Min: 0 Max: 1 Factory setting: 0 Unit: — Data type: I16 Effective: IM Can be changed: T SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 298
Float Description: Displays the smoothed absolute actual current value. Notice: This smoothed signal is not suitable for diagnostics or evaluation of dynamic operations. In this case, the unsmoothed value should be used. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 299
• [16]: Depletion layer 4 • [17]: Depletion layer 5 • [18]: Depletion layer 6 • [19]: Cooling unit liquid intake • Dependency: Refer to A01009 Notice: Only for internal Siemens troubleshooting. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 300
Update time = 4 * LCM(250 μs, 125 μs) = 4 * 250 μs = 1 ms – Example 2: infeed, servo, vector Update time = 4 * LCM(250 μs, 125 μs, 500 μs) = 4 * 500 μs = 2 ms SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 301
Description: Displays additional information about the fault that occurred (as integer number). Dependency: Refer to r0945 Note: The buffer parameters are cyclically updated in the background. The structure of the fault buffer and the assignment of the indices is shown in r0945. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 302
11.2 Parameter list Parameter Name Unit Data type r0964[0…6] Device identification Description: Displays the device identification. Index: [0]: Company (Siemens = 42) • [1]: Device type • [2]: Firmware version • [3]: Firmware data (year) • [4]: Firmware data (day/month) •… -
Page 303
Unit Data type Note: Example: r0975[0] = 42 → SIEMENS r0975[1] = SERVO drive object type r0975[2] = 102 → First part of the firmware version V01.02 (for second part, refer to index 10) r0975[3] = 2003 → Year 2003 r0975[4] = 1401 →… -
Page 304
PROFIdrive: MDI_MOD receive bit-serial for telegram 9 Description: Binector output for bit-serial onward interconnection of a PZD word received from the PROFIdrive controller. r2122[0…63] Alarm code Description: Displays the number of faults that have occurred. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 305
Description: Displays the active default gateway for the onboard PROFINET interface on the Control Unit. r8933[0…3] PROFIdrive: Active subnet mask of station Description: Displays the active subnet mask for the onboard PROFINET interface on the Control Unit. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 306
Bit 8: OLL • Bit 9: Reserved • Bit 10: Reserved • Bit 11: Reserved • Bit 12: Reserved • Bit 13: RDY_ON • Bit 14: STO_EP • Bit15: PZD1 • Bit16: PZD2 • SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 307: Diagnostics
The message classes that are available are shown in the table below, which provides the text of the message class, their number according to PROFIdrive, and a brief help text regarding the cause and remedy. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 308
Check the set thresholds. Application/technological function faulty The application/technological function has exceeded a (set) limit (position, (17) velocity, torque …). Identify and check the relevant limit. Check the setpoint specification of the higher-level controller. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 309
NOTICE Faults are displayed in prior to alarms If both faults and alarms occur, faults are displayed prior to alarms. Alarms are displayed only after all faults have been acknowledged. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 310
BOP operations for faults and alarms To view faults or alarms, proceed as follows: ● Faults ● Alarms To exit from fault or alarm display, proceed as follows: ● Faults ● Alarms SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 311: List Of Faults And Alarms
Carry out a POWER ON (power off/on) for • all components. Message class: Hard- ware/software error (1) Upgrade firmware to the latest version. • Reaction: OFF2 Contact the Hotline. • Acknowledgement: IMMEDIATELY SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 312
Carry out a POWER ON (power off/on) for • STO. error (10) all components. Reaction: OFF2 Upgrade software. • Acknowledgement: Replace the Control Unit. • IMMEDIATELY SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 313
• tion/configuration/commissionin have exceeded the dynamic limits. g procedure (18) They cannot be used due to the fact • Reaction: NONE that the hardware detected not hav- Acknowledgement: ing certain features. IMMEDIATELY SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 314
Motor not connected or motor con- • Check the Motor Module. • (17) tactor open. Reaction: OFF2 No DC link voltage present. • Acknowledgement: Motor Module defective. • IMMEDIATELY SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 315
Maximum permissible value for the ref- lated by the following formula: Reaction: OFF1 (OFF2, OFF3) erence point coordinate. For multi-turn encoders: • Acknowledgement: (4096 * p29247) / 2 IMMEDIATELY For single-turn encoders: • p29247 / 2 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 316
Reaction: OFF1 Position monitoring time parameter- • Acknowledgement: ized too short (p2545). IMMEDIATELY Position loop gain is too low. • Position loop gain is too high (insta- • bility/oscillation). Drive mechanically locked. • SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 317
Message class: Applica- without detecting an edge at the binector tion/technological function faulty input «reference cam». (17) Maximum traversing range: — Reaction: OFF1 (OFF2, OFF3) 2147483648 [LU] … -2147483647 [LU] Acknowledgement: IMMEDIATELY SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 318
Change software limit switch plus (CI: • switch plus. Message class: Applica- p2581). tion/technological function faulty See also: p2580 (EPOS software limit switch (17) minus), p2582 (EPOS software limit switch Reaction: OFF1 (OFF2, OFF3) activation) Acknowledgement: IMMEDIATELY SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 319
STOP cam plus was reached, i.e. the the valid traversing range. (17) wiring of the STOP cam is incorrect. Check the wiring of the STOP cam. • Reaction: OFF3 Acknowledgement: IMMEDIATELY SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 320
EPOS: p29247 * p29244 IMMEDIATELY Motor encoder without position tracking: For multiturn encoders: • EPOS: p29247 * p29248 * 4096 / p29249 For singleturn encoders: • EPOS: p29247 * p29248 / p29249 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 321
(17) speed actual value is oscillating and the speed controller output repeatedly goes Check the motor encoder connection. • Reaction: OFF2 to its limit. Check the encoder pulse number. • Acknowledgement: IMMEDIATELY SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 322
Increase the current limit of the infeed or • Reaction: OFF2 Line phase interrupted. • use a larger module. Acknowledgement: Check the device supply voltage. • IMMEDIATELY Check the line supply phases. • SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 323
• Message class: Ground Ground fault in the power cables. • Check the motor. • fault/inter-phase short-circuit Winding fault or ground fault at the • detected (7) motor. Reaction: OFF2 Acknowledgement: IMMEDIATELY SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 324
This means that if Reaction: ENCODER a zero mark is missing, depending on Acknowledgement: PULSE the pair generation, this cannot result in INHIBIT a fault and also has no effect in the system. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 325
C/D, check the connection. available (11) Fine synchronization was not carried Check the connection of track C or D. • Reaction: ENCODER out. Acknowledgement: PULSE Replace the encoder or encoder cable. • INHIBIT SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 326
Use a suitable absolute encoder motor. motor mismatched cannot be operated. The servo drive in use does not support the Motor ID. Message class: General drive fault (19) Reaction: OFF1 Acknowledgement: IMMEDIATELY SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 327
The write access to the removable data Remove and check the removable data me- able data medium unsuccess- medium was unsuccessful. dium. Then run the data backup again. Message class: Over- temperature of the electronic component (6) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 328
Drive Bus clock cycle. Message class: Communica- chronization (ensure To > Tdx). tion to the higher-level con- Note: troller faulted (9) To: Time of setpoint acceptance Tdx: Data exchange time SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 329
The following applies for the tolerance See also: p29006 (Line supply voltage) range: 1.16 × p29006 < r0026 < 1.6 × p29006 Note: The fault can only be acknowledged when the drive is switched off. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 330
Reduce the velocity override. • (p2571) and is therefore limited. Message class: Applica- Increase the maximum velocity (p2571). • tion/technological function Check the signal source for the externally faulty (17) • limited velocity. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 331
STW1.13. traversing block CONTINUE_EXTERNAL_ALARM, the external block change was not requested. Message class: Applica- Alarm value (r2124, interpret decimal): tion/technological function faulty (17) Number of the traversing block. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 332
A7474: EPOS: End of trav- When traversing, the axis has moved to Move away in the negative direction. ersing range reached the traversing range limit. Message class: Applica- tion/technological function faulty (17) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 333
In the EPOS control mode, no servo on Send servo on command to the drive via possible command is sent to the drive via PROFINET. PROFINET. Message class: Applica- tion/technological function faulty (17) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 334
(18) the motor data identification request will be lost. If motor data identification is required, it will need to be selected again manually fol- lowing ramp-up. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 335
EMC. Message class: Actual posi- Check the motor temperature. • tion/speed value incorrect or Replace the motor/encoder. • not available (11) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 336
A52902: Quick stop (EMGS) Implement servo on when the digital input Switch on the digital input (EMGS) and then missing (EMGS) is switched off. implement servo on. Message class: General drive fault (19) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 337: Appendix
If you use non-Siemens cable assemblies, for example, cables you made by yourself or cables from a third party, Siemens does not guarantee that the drive system composed of V90 servo drive and 1FL6 servo motor meets the CE standards. If you use…
-
Page 338
● Connecting cable shields When you assemble the drive side encoder connectors, the cable shields must be connected to the ground plate and then connected to the housing. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 339: Assembly Of Cable Terminals/Connectors On The Drive Side
2. Remove the insulation from the wire. 3. Insert the stripped end into the spade terminal. 4. Crimp the spade terminal using a crimp tool for cable lugs. (Note: Coat any exposed wires with tin.) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 340: Encoder Connector Assembly
For drives of all the frame sizes, the basic assembly procedures for the encoder connector on the drive side are the same. The only thing you need to pay attention to is the different signal connections for the absolute encoder connector and the incremental encoder connector. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 341: Brake Terminal Assembly
Brake terminal assembly The assembly of a brake terminal follows the procedure as described for a power terminal of the 200 V variant servo drive. See Section «Power terminal assembly (Page 337)» for details. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 342: Setpoint Connector Assembly
The shielding wire may inadvertently be short-circuited to the unused pin on the to-be- assembled setpoint connector. This can cause damage to the drive. • When assembling the connector, exercise caution when connecting the shielding cable to the setpoint connector. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 343: Assembly Of Cable Connectors On The Motor Side
Appendix A.3 Assembly of cable connectors on the motor side Assembly of cable connectors on the motor side A.3.1 Power connector assembly Power cable used for low inertia motors (SH20, SH30, SH40) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 344
Appendix A.3 Assembly of cable connectors on the motor side Power cable used for motors with straight connectors (low inertia motors SH50 and high inertia motors) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 345
Appendix A.3 Assembly of cable connectors on the motor side Power cable used for motors with angular connectors (low inertia motors SH50 and high inertia motors) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 346: Encoder Connector Assembly
Appendix A.3 Assembly of cable connectors on the motor side A.3.2 Encoder connector assembly Incremental encoder cable used for low inertia motors (SH20, SH30, SH40) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 347
Appendix A.3 Assembly of cable connectors on the motor side Absolute encoder cable used for low inertia motors (SH20, SH30, SH40) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 348
Appendix A.3 Assembly of cable connectors on the motor side Encoder cable used for motors with straight connectors (low inertia motors SH50 and high inertia motors) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 349
Encoder cable used for motors with angular connectors (low inertia motors SH50 and high inertia motors) Note No matter which type of the encoder connectors is (incremental or absolute), the assembly procedures for them are the same if they have the same look. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 350: Brake Connector Assembly
The assembly of a brake terminal follows the procedure as described for an encoder connector used for motors with angular connectors. See Section «Encoder connector assembly (Page 344)» for details. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 351: Motor Selection
Calculate the torque according to the load inertia, acceleration time, deceleration time, and constant motion time. 6. Select the motor. Select the motor that matches the data in step 3 to step 5. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 352: Parameter Description
Inertia refers to the force required to keep a certain physical state. Inertia ratio indicates dynamic response performance of motors. The smaller the inertia ratio is the better response performance a motor has. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 353
W: Mass (kg) W: Mass (kg) D: Pulley wheel diameter (m) : Speed of each motor Reducer (rpm) : Pulley inertia (kg·m Object hung with pulley : Inertia of each motor (kg·m SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 354: Selection Examples
0.5 m Gravitational acceleration 9.81 m/s Frictional coefficient μ 0.025 Calculating velocity: Maximum travelling velocity: Calculating forces, pitch angle and friction angle Frictional force: Accelerating force/decelerating force: Pitch angle of the ball screw: SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 355
Accelerating torque and decelerating torque for the ball screw + coupling: Preselecting the motor Based on the calculated torques, if we select the 1FL6062 motor: = 2000 rpm, M = 4.78 Nm, J = 1.57 × 10 motor Then the inertia ratio: SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 356
If the expression in brackets has a negative sign, the sign of β changes to minus Final selection According to the above calculated speed, torque, and inertia ratio, 1FL6062 motor is suitable. SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 357: Replacing Fans
When re-assembling the fan, make sure that the arrow symbol (» «in the illustration) on the fan points to the drive rather than the fan housing. Replacing the fan (example) SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 358
Appendix A.5 Replacing fans SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008… -
Page 359: Index
Connecting the cable shields, 101 Iterative process for achieving safety, 234 Copy parameter set from a micro SD card/SD card to drive, 156 Copy parameters from the servo drive to a micro SD card/SD card, 155 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
-
Page 360
Quick stop (OFF3), 161 Operating display, 146 Ramp-down (OFF1), 161 OSHA, 236 System connection diagrams, 97 Over-travel, 174 Overview of SINAMICS V90 PN BOP functions, 151 Technical data Cables, 69 Preface Torque control mode Documentation components, 3 Internal speed limit, 200… -
Page 361
Index Manual tuning, 258 Real-time auto tuning, 255 Servo gains, 248 Tuning methods, 249 Tuning with SINAMICS V-ASSISTANT, 250 Update firmware, 157 Wiring and connecting Adjusting cable orientations, 102 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 04/2020, A5E37208830-008…
● Alarms
To acknowledge faults, proceed as follows:
Note
If you do not eliminate the cause(s) of the fault, it can appear again after no button operation for five seconds. Make sure
•
that you have eliminated the cause(s) of the fault.
You can acknowledge faults using RESET signal. For details, refer to Operating Instructions.
•
You can acknowledge faults on SINAMICS V-ASSISTANT. For details, refer to SINAMICS V-ASSISTANT Online Help.
•
7.2
This section lists only common faults and alarms. To view the detailed information of all faults and alarms, call the online
help for an active fault/alarm in the SINAMICS V-ASSISTANT engineering tool.
Fault list
Fault
Description
F1000
Internal software error
F1001
Floating Point exception
F1002
Internal software error
F1003
Acknowledgment delay when accessing the
memory
F1015
Internal software error
F1018
Booting has been interrupted several times
F1030
Sign-of-life failure for master control
F1611
SI CU: Defect detected
F7011
Motor overtemperature
F7085
Open-loop/closed-loop control parameters
changed
F7093
Test signal error
F7403
Lower DC link voltage threshold reached
F7404
Upper DC link voltage threshold reached
Getting Started
A5E36037886-003, 04/2017
Fault
Description
F7800
Drive: No power unit present
F7801
Motor overcurrent
F7802
Infeed or power unit not ready
F7815
Power unit has been changed
F7900
Motor blocked/speed controller at its limit
F7901
Motor overspeed
F7995
Motor identification failure
F30001
Power unit: Overcurrent
F30002
DC link voltage, overvoltage
F30003
DC link voltage, undervoltage
F30004
Drive heat sink overtemperature
F30005
Power unit: Overload I
F30011
Line phase failure in main circuit
t
2
113
|
|
Ремонт сервопривода Siemens
Сервисный центр «Кернел» предлагает выполнить качественный ремонт сервопривода Siemens в Батайске на компонентном уровне в максимально сжатые сроки. Сервопривод относятся к сложной промышленной электронике именно поэтому ремонтом сервоприводов Siemens, впрочем, как и других производителей должны заниматься специалисты, имеющие не только высшее техническое образование, но и солидный опыт в ремонте подобной промышленной электроники.
Также для восстановления подобного промышленного оборудования понадобится хорошая материально-техническая база. При выполнении всех выше перечисленных условий, шансы на успешный ремонт возрастают в геометрической прогрессии.
Именно поэтому за ремонтом сервоприводов, независимо от производителя лучше всего обращаться в специализированный сервисный центр, который отвечает всем техническим требованиям, такой как Кернел. Наш цент имеет отличную материально-техническую базу, а за время существования с 2002 года специалисты компании накопили бесценный опыт в том числе опыт в ремонте сервоприводов Siemens.
Особенности ремонта сервопривода Siemens
Ремонт сервоприводов Siemens имеет ряд индивидуальных особенностей, это связано с конструктивными особенностями данного промышленного оборудования. По аналогии с частотными преобразователями они состоят из двух взаимосвязанных частей, это:
- Аппаратная часть;
- Программная часть.
В первую очередь ремонтируется аппаратная часть промышленного сервопривода. После глубокой диагностики неисправного блока выявляются все неисправные компоненты, которые в последствии заменяются на оригинальные запасные части (по возможности), в случае если сервопривод уже давно снят с производства и найти оригинальные запчасти просто невозможно они заменяются на аналоги.
Данный вид ремонта называется компонентным. От других видов его отличает две немаловажные детали.
- Значительное удешевление ремонта;
- Существенное сокращение времени ремонта.
По завершении ремонта аппаратной части сервопривода наступает очередь программной. В зависимости от серии выбирается программный продукт и зашивается в блок.
Заключительный этап ремонта сервопривода Siemens это проверка на специализированном стенде. Все блоки проверяются без нагрузки и с нагрузкой не менее двух часов.
Ошибки сервопривода Siemens V90
Ошибка |
Причина ошибки |
Указания по устранению ошибки |
F1 |
Мощность двигателя (P0307) не соответствует мощности преобразователя (r0206). Короткое замыкание на кабеле двигателя. Замыкание на землю r0949 = 0: Аппаратное сообщение r0949 = 1: Программное сообщение r0949 = 22: Аппаратное сообщение |
Проверить следующие пункты: Мощность двигателя (P0307) должна соответствовать мощности преобразователя (r0206). Запрещено превышать макс. длину кабелей. Не должно быть короткого замыкания или замыкания на землю соединительного кабеля двигателя и двигателя. Параметры двигателя должны совпадать с используемым двигателем. Значение для сопротивления статора (P0350) должно быть правильным. Двигатель не должен быть заблокирован или перегружен. Увеличить время разгона (p1120) Уменьшить пусковое усиление (P1312) |
F2 |
Слишком высокое напряжение сети. Двигатель в генераторном режиме. r0949 = 0: Аппаратное сообщение r0949 = 1 или 2: Программное сообщение |
Проверить следующие пункты: Напряжение питания (P0210) должно лежать в границах, указанных на шильдике предельных значений. Время торможения (P1121) должно соответствовать моменту инерции нагрузки. Требуемая тормозная мощность должна лежать в границах установленных предельных значений. Vdc-регулятор должен быть активирован (P1240) и правильно спараметрирован. Указание: Генераторный режим может быть запущен быстрым торможением или приводом двигателя активной нагрузкой. Для высокого момента инерции требуется более длинная рампа торможения. В ином случае необходим использовать тормозной резистор. |
F3 |
Отказ сети питания. Ударная нагрузка вне установленных предельных значений. r0949 = 0: Аппаратное сообщение r0949 = 1 или 2: Программное сообщение |
Проверить напряжение питания. |
F4 |
Преобразователь перегружен. Недостаточная вентиляция. Слишком высокая частота импульсов. Слишком высокая температура окружающей среды. Вентилятор не работает. |
Проверить следующие пункты: Слишком высокая нагрузка или нагрузочный цикл? Мощность двигателя (P0307) должна соответствовать мощности преобразователя (r0206). Частота импульсов должна быть установлена на значение по умолчанию. Слишком высокая температура окружающей среды? При работе преобразователя вентилятор должен вращаться. |
F5 |
Преобразователь перегружен. Слишком высокий нагрузочный цикл. Мощность двигателя (P0307) превышает мощность преобразователя (r0206). |
Проверить следующие пункты: Нагрузочный цикл должен лежать в границах установленных предельных значений. Мощность двигателя (P0307) должна соответствовать мощности преобразователя (r0206). Указание: F5 не может быть удалена, до тех пор, пока загрузка преобразователя относительно перегрузки (r0036) ниже, чем предупреждение о перегрузке преобразователя I2t (P0294). |
F6 |
Слишком высокая нагрузка при запуске. Шаг нагрузки слишком высокий. Время разгона слишком короткое. |
Проверить следующие пункты: Слишком высокая нагрузка или нагрузочный цикл? Увеличить время разгона (p1120). Мощность двигателя (P0307) должна соответствовать мощности преобразователя (r0206). Использовать установку P0290 = 0 или 2 для предотвращения F6. |
F11 |
Двигатель перегружен. |
Проверить следующие пункты: Слишком высокая нагрузка или нагрузочный цикл? Ном. параметры для перегрева двигателя (P0626 – P0628) должны быть правильными. Необходимо соблюдать порог предупреждения для температуры двигателя (P0604). |
Эта ошибка возможна тогда, когда используются маленькие двигатели (≤ 250 В, 4- или 2- полюсные) и на частоте ниже 15 Гц, даже если температура двигателя остается в допустимых пределах. |
Проверить следующие пункты: Ток двигателя не превышает ном. тока двигателя согласно шильдику. Физическая температура двигателя в пределах нормы. Если оба этих условия выполнены, установить прараметр P0335 = 1. |
|
F12 |
Обрыв кабеля датчика температуры преобразователя (радиатора) |
Заменить кабель. |
F20 |
Вычисленная пульсация постоянного тока превысила безопасное пороговое значение. Причиной этого чаще всего является выпадение входной фазы сети. |
Проверить кабель питания. |
F35 |
Число попыток автоматического перезапуска превышает значение в P1211. |
|
F41 |
Идентификация параметров двигателя не удалась. r0949 = 0: Нет нагрузки r0949 = 1: Граница тока была достигнута при идентификации. r0949 = 2: Полученное сопротивление статора ниже 0,1 % или выше 100 %. r0949 = 30: Регулятор тока на предельном значении напряжения r0949 = 40: Неконсистентность полученного блока данных, не удалась минимум одна идентификация Процентные значения на базе полного сопротивления Zb = Vmot,nom / sqrt(3) / Imot,nom |
Проверить следующие пункты: r0949 = 0: Двигатель подключен к преобразователю? r0949 = 1 – 49: Параметры двигателя в P0304 до P0311 правильные? Проверить, какой тип соединения двигателя необходим (звезда, треугольник). |
F51 |
Ошибка чтения или записи при обращении к EEPROM. Причиной может быть и заполнение EEPROM, если было изменено слишком много параметров. |
Для устранения этой ошибки необходимо выключить и снова включить устройство, т.к. возможно, что некоторые параметры были считаны неправильно. Если выключение/включение не устраняет ошибки, то потребуется сброс на заводские установки и повторное параметрирование. Установить некоторые параметры на значения по умолчанию, если EEPROM переполнен, и после выключить и снова включить устройство. Заменить преобразователь. Указание: r0949 = 1: EEPROM заполнен. r0949 = 1000 + номер блока: Ошибка при чтении блока данных. r0949 = 2000 + номер блока: Превышение времени при чтении блока данных. r0949 = 3000 + номер блока: Ошибка CRC при чтении блока данных. r0949 = 4000 + номер блока: Ошибка при записи блока данных. r0949 = 5000 + номер блока: Превышение времени при записи блока данных. r0949 = 6000 + номер блока: Ошибка проверки при записи блока данных. r0949 = 7000 + номер блока: Чтение блока данных в неправильный момент времени. r0949 = 8000 + номер блока: Запись блока данных в неправильный момент времени. r0949 = 9000 + номер блока: Ошибка при сбросе на заводские установки из-за перезапуска или отключения сети. |
F52 |
Ошибка при чтении данных преобразователя или недействительные данные. |
Указание: r0949 = 1: Ошибка при чтении ID преобразователя. r0949 = 2: Неправильный ID преобразователя. r0949 = 3: Ошибка при чтении версии преобразователя. r0949 = 4: Неправильная версия преобразователя. r0949 = 5: Неправильное начало части 1 данных преобразователя. r0949 = 6: Неправильный номер преобразователя датчика температуры. r0949 = 7: Неправильный номер преобразователя приложения. r0949 = 8: Неправильное начало части 3 данных преобразователя. r0949 = 9: Ошибка при чтении цепочки символов для данных преобразователя. r0949 = 10: Ошибка CRC на преобразователе. r0949 = 11: Преобразователь пустой. r0949 = 15: Ошибка CRC блока преобразователя 0. r0949 = 16: Ошибка CRC блока преобразователя 1. r0949 = 17: Ошибка CRC блока преобразователя 2. r0949 = 20: Преобразователь недействительный r0949 = 30: Неправильный размер директории. r0949 = 31: Неправильный ID директории. r0949 = 32: Недействительный блок. r0949 = 33: Неправильный размер файла. r0949 = 34: Неправильный размер сегмента данных. r0949 = 35: Неправильный размер сегмента блока. r0949 = 36: Размер RAM превышен. r0949 = 37: Неправильный размер параметра. r0949 = 38: Неправильная заглавная строка устройства. r0949 = 39: Недействительный указатель файла. r0949 = 40: Неправильная версия блока масштабирования. r0949 = 41: Неправильная версия блока калибровки. r0949 = 50: Неправильный формат серийного номера. r0949 = 51: Неправильный формат серийного номера в начале. r0949 = 52: Неправильный формат серийного номера в конце. r0949 = 53: Неправильный формат серийного для месяца. r0949 = 54: Неправильный формат серийного для дня. r0949 = 1000 + адрес: Ошибка при чтении данных на преобразователе. r0949 = 2000 + адрес: Ошибка при записи данных на преобразователе. r0949 = 3000 + адрес: Неправильное время при чтении данных на преобразователе. r0949 = 4000 + адрес: Неправильное время при записи данных на преобразователе. r0949 = 5000 + адрес: Недействительное чтение данных на преобразователе. r0949 = 6000 + адрес: Недействительная запись данных на преобразователе. Выключить и снова включить преобразователь. Связаться со службой сервиса для клиентов или заменить преобразователь. |
F60 |
Внутренняя ошибка коммуникации. |
Проверить преобразователь. Ошибка появляется нерегулярно: Указание: r0949 = 0: Аппаратное сообщение об отсутствии соединения. r0949 = 1: Программное сообщение об отсутствии соединения. r0949 = 6: Обратный сигнал не был деактивирован для чтения данных преобразователя. r0949 = 7: При загрузке на преобразователь не было передано сообщение для деактивации обратного сигнала. Ошибка коммуникации из-за проблем ЭМС. Проверить и при необходимости исправить ЭМС. Использовать фильтр ЭМС. |
F61 |
Ошибка при копировании параметров. r0949 = 0: Карта MMC/SD не вставлена, неправильный тип карты или карта не инициализирована для автоматического копирования r0949 = 1: Данные преобразователя не могут быть записаны на карту. r0949 = 2: Файл копирования параметров отсутствует r0949 = 3: Карта MMC/SD не может прочесть файл. r0949 = 4: Ошибка при чтении данных из копии файла (к примеру, ошибка при чтении, неправильные данные или контрольная сумма) |
формате FAT16 или FAT32 или вставить карту MMC/SD в преобразователь. r0949 = 1: Проверить карту MMC/SD (к примеру, на предмет заполнения памяти). — Заново форматировать карту в FAT16 или FAT32. r0949 = 2: Сохранить правильно названный файл в нужную директорию (/USER/SINAMICS/DATA). r0949 = 3: Убедиться, что доступ к файлу возможен. При необходимости заново создать файл. r0949 = 4: Файл был изменен. Заново создать файл. |
F62 |
Файл имеется, но с недействительным содержанием (управляющее слово повреждено). |
Заново скопировать файл и убедиться, что процесс завершен. |
F63 |
Файл имеется, но с тип преобразователя был неправильный. |
Убедиться, что копия поступила от совместимого типа преобразователя. |
F64 |
В директории /USER/SINAMICS/DATA нет файла «Clone00.bin». |
Если необходимо автоматическое копирование: Вставить карту MMC/SD с правильным файлом и выключить/снова включить устройство. Если автоматическое копирование не нужно: Удалить карту, если она больше не нужна, и выключить/снова включить устройство. Сбросить P8458 на 0 и выключить/снова включить устройство. Указание: Ошибка может быть стерта только через выключение и повторное включение |
F71 |
За время получения телеграммы заданные значения с USS не были получены. |
Проверить USS-Master. |
F72 |
За время получения телеграммы заданные значения от USS/MODBUS не были получены. |
Проверить USS|MODBUS-Master. |
F80 |
Обрыв провода. Сигнал вне предельных значений. |
|
F85 |
Внешняя ошибка, запущенная командным входом через управляющее слово 2, бит 13. |
Проверить P2106. Деактивировать управляющее слово 2, бит 13 как источник команды. Деактивировать вход триггера ошибки на клеммнике. |
F100 |
Программная ошибка. |
Связаться со службой сервиса для клиентов или заменить преобразователь. |
F101 |
Программная ошибка или отказ процессора. |
Связаться со службой сервиса для клиентов или заменить преобразователь. |
F221 |
Обратный сигнал ПИД ниже мин. значения в P2268. |
Изменить значение P2268. Согласовать коэффициент усиления обратной связи. |
F222 |
Обратный сигнал ПИД выше макс. значения в P2267. |
Изменить значение P2267. Согласовать коэффициент усиления обратной связи. |
F350 |
При запуске преобразователь проверяет, был ли вектор конфигурации (SZL-вектор) запрограммирован правильно и соответствует ли аппаратное обеспечение запрограммированному вектору. Ели нет, то преобразователь отключается. r0949 = 1: Внутренняя ошибка. Вектор аппаратной конфигурации недоступен. r0949 = 2: Внутренняя ошибка. Вектор программной конфигурации недоступен. r0949 = 11: Внутренняя ошибка. Код преобразователя не поддерживается. r0949 = 12: Внутренняя ошибка. Программный вектор невозможен. r0949 = 13: Установлен неправильный силовой модуль. r0949 > 1000: Внутренняя ошибка. Установлена неправильная плата I/O. |
Внутренние ошибки не могут быть устранены. r0949 = 13 – Убедиться, что смонтирован правильный силовой модуль. Указание: Для квитирования ошибки выключить и снова включить устройство. |
F395 |
Эта ошибка возникает после копирования при запуске. Она может быть вызвана неправильным чтением из EEPROM (см. F51). Возможно, что копия перезапуска была изменена или не соответствует случаю использования. Этот блок должен быть проверен до запуска двигателя преобразователем. r0949 = 3/4: Изменение данных преобразователя. r0949 = 5: При перезапуске было выполнено копирование через карту MMC/SD. r0949 = 10: Предшествующее копирование при перезапуске было отменено. |
Текущий блок параметров должен быть проверен и подтвержден через удаление сообщения об ошибке. |
F410 |
Имеющиеся условия могут вызвать повреждения из-за кавитации. Повреждения из-за кавитации имеют причиной насос в насосной системе, если проток жидкости недостаточен. Это может привести к перегреву и повреждению насоса как следствию. |
Если кавитация отсутствует, то можно уменьшить пороговое значение кавитации в P2361 или увеличить задержку для обнаружения кавитации. Необходимо убедиться, что обратный сигнал датчика работает. |
F452 |
Условия нагрузки на двигатели показывают обрыв ремня или механическую неисправность. r0949 = 0: Отключение, низкие момент/частота. r0949 = 1: Отключение, высокие момент/частота. |
Проверить следующие пункты: Места поломки, повреждения или препятствия на приводе от преобразователя. При необходимости нанести смазку. При использовании внешнего датчика частоты вращения необходимо проверить правильность следующих параметров: — P2192 (время задержки для допустимого отклонения) — P2182 (порог частоты f1) — P2183 (порог частоты f2) — P2184 (порог частоты f3) При использовании спец. диапазона момента/частоты проверить следующие параметры: — P2182 (порог частоты 1) — P2183 (порог частоты 2) — P2184 (порог частоты 3) — P2185 (верхний порог момента вращения. 1) — P2186 (нижний порог момента вращения. 1) — P2187 (верхний порог момента вращения. 2) — P2188 (нижний порог момента вращения. 2) — P2189 (верхний порог момента вращения. 3) — P2190 (нижний порог момента вращения. 3) — P2192 (время задержки для допустимого отклонения) |
Предупреждение |
Причина |
Указания по устранению предупреждения |
A501 |
Мощность двигателя не соответствует мощности преобразователя. Кабели двигателя слишком длинные. Замыкание на землю. |
Смотрите F1. |
Маленькие двигатели (120 В) в режиме FCC при небольшой нагрузке могут вызывать высокий ток. |
Использовать очень маленькие двигатели в режиме U/f. |
|
A502 |
Предельное значение перенапряжения было достигнуто. При торможении может появиться предупреждение, если Vdc- регулятор деактивирован (P1240 = 0). |
Если предупреждение остается длительное время, то проверить входное напряжение на преобразователе. |
A503 |
Отказ сети питания. Напряжение сети и тем самым напряжение промежуточного контура (r0026) упали ниже установленного предельного значения. |
Проверить напряжение сети. |
A504 |
Порог предупреждения для температуры радиатора на преобразователе, для запирающего слоя чипа или для допустимого перепада температуры на запирающем слое чипа, был превышен, что привело к падению частоты импульсов и/или выходной частоты (в зависимости от параметрирования в P0290). |
Указание: r0037 = 0: Температура радиатора r0037 = 1: Температуры на запирающем слое чипа (включает радиатор) Проверить следующие пункты: Температура окружающей среды должна лежать в границах установленных предельных значений. Условия нагрузки и шаги нагрузки должны быть соразмерными. При работе преобразователя вентилятор должен вращаться. |
A505 |
Порог предупреждения был превышен. Ток уменьшается, если было спараметрировано (P0610 = 1). |
Проверить лежит ли нагрузочный цикл в границах установленных предельных значений. |
A506 |
Предупреждение о перегрузке. Разность между температурой на радиаторе и запирающем слое IGBT превышает границы предупреждения. |
Проверить лежат ли шаги нагрузки и ударная нагрузка в границах установленных предельных значений. |
A507 |
Сигнал для температуры радиатора на преобразователе пропал. Возможен отказ датчика. |
Связаться со службой сервиса для клиентов или заменить преобразователь. |
A511 |
Двигатель перегружен. Циклы нагрузки или шаги нагрузки слишком высоки. |
Независимо от типа определения температуры, необходимо проверить следующее: P0604 Порог предупреждения для температуры двигателя P0625 Температура окружающей среды двигателя Проверить правильность данных шильдика. В ином случае выполнить «базовый ввод в эксплуатацию». Точные данные схемы замещения могут быть получены при идентификации двигателя (P1900 = 2). Проверить соразмерность веса двигателя (P0344). При необходимости изменить. С помощью P0626, P0627 и P0628 можно изменить перегрев по умолчанию, если двигатель не является стандартным двигателем SIEMENS. |
A535 |
Тормозная энергия слишком высокая. Тормозное резистор не подходит для приложения. |
Снизить тормозную энергию. Использовать тормозной резистор большей мощности. |
A541 |
Идентификация параметров двигателя (P1900) была выбрана или выполняется. |
|
A600 |
Потеря данных, внутренний интервал времени. |
Связаться со службой сервиса для клиентов. |
A910 |
Возникает: При слишком высоком напряжении сети (P0210) в течение длительного времени. Если двигатель приводится в движение активной нагрузкой и тем самым переходит в генераторный режим. При слишком высокой инерции нагрузки при торможении. Если появляется предупреждение A910, когда преобразователь находится в режиме Standby (выходной импульс деактивирован), и после выводится команда ON, то регулятор Vdc_max (A911) активируется только тогда, когда предупреждение A910 будет исправлено. |
Проверить следующие пункты: Входное напряжение должно лежать в установленном диапазоне. Нагрузка должна быть соразмерной. В определенных ситуациях надо использовать тормозной резистор. |
A911 |
Регулятор Vdc_max поддерживает напряжение промежуточного контура (r0026) ниже предельного значения (r1242). |
Проверить следующие пункты: Напряжение питания должно лежать в границах, указанных на шильдике предельных значений. Время торможения (P1121) должно соответствовать моменту инерции нагрузки. Указание: Для высокого момента инерции требуется более длинная рампа торможения. В ином случае необходим использовать тормозной резистор. |
A912 |
Регулятор Vdc_min активируется, если напряжение промежуточного контура (r0026) падает ниже предельного значения (r1246). Кинетическая энергия двигателя используется для буферизации напряжения промежуточного контура, что вызывает торможение преобразователя. Поэтому короткие отключения сети не обязательно приводят к отключению из-за мин. напряжения. Помнить, что это предупреждение может появиться и при быстром разгоне. |
|
A921 |
Для параметров AO (P0777 и P0779) не должны устанавливаться идентичные значения, так это может привести к нелогичным результатам. |
Проверить следующие пункты: Идентичные установки параметров для выхода Идентичные установки параметров для входа Установки параметров для выхода не соответствуют типу AO Установить для P0777 и P0779 разные значения. |
A922 |
На преобразователь не подается нагрузка. По этой причине некоторые функции не работают так, как при нормальных условиях нагрузки. |
Проверить, подключен ли двигатель к преобразователю. |
A923 |
Были запрошены как JOG вправо, так и JOG влево (P1055/P1056). Из-за этого выходная частота датчика интенсивности остается на текущем значении. |
JOG вправо и влево не могут быть нажаты одновременно. |
A930 |
Имеющиеся условия могут вызвать повреждения из-за кавитации. |
Смотрите F410. |
A936 |
Автоматическая оптимизация ПИД (P2350) была выбрана или выполняется. |
Предупреждение исчезает сразу по завершении автоматической оптимизации ПИД. |
A952 |
Условия нагрузки на двигатели показывают обрыв ремня или механическую неисправность. |
Смотрите F452. |
Схемы подключения серво привода Siemens
В некоторых случает может понадобится схема подключения сервоприводов, ниже мы показана схема сервопривода Siemens Sinamics V90
Принципиальная схема подключения сервопривода Siemens Sinamics V90 |
Схема подключения сервопривода Siemens Sinamics V90 |
|
|
О сервоприводе Siemens Sinamics V90
Серия сервоприводов Siemens Sinamics V90 является универсальной и способна решать задачи общего назначения. Сервопривода Siemens Sinamics V90 построены на архитектуре Plug&Play, тем самым обеспечивая простой монтаж и последующий ввод оборудования в экспуатацию. Сервопривод Siemens Sinamics V90 самостоятельно производит автоматическую настройку при соединении серводвигателя с сервоприводом.
Кроме стандартных функций привода имеют в своем составе функцию шагового и внутреннего позиционирования плюс режим регулирования момента и скорости. Компания Siemens выпускает сервопривода серии Sinamics V90 в широком диапазоне диапазоне от 40 Вт до 7 кВт.
Преимущество ремонта сервоприводов Siemens в нашем сервисном центре
- Предварительный осмотр на возможность восстановления бесплатный;
- Мы производим ремонт сервопривода Siemens на компонентном уровне (экономия бюджета и времени)
- При ремонте сервоприводов ни каких конструктивных изменений не вносим;
- Ремонт блоков с применением оригинальных запасных частей (по возможности).
- Вы платите исключительно за результат — работающий сервопривод;
- Гарантия на ремонт 6 месяцев;
- Сроки ремонта варьируются от 5 до 15 рабочих дней;
За два десятилетия существования сервисного центра нашими специалистами были успешно проведены тысячи подобных ремонтов с каждым разом поднимая квалификацию наших инженеров.
Оставить заявку на ремонт сервопривода Siemens
У вас остались вопросы, связанные с ремонтом или сбросом ошибок, а также программированием и настройкой сервоприводов Siemens? Оставьте заявку на ремонт сервопривода Siemens в Батайске нашим менеджерам. Связаться с ними можно несколькими способами:
- Заказав обратный звонок (кнопка в правом нижнем углу сайта)
- Посредством чата (кнопка расположена с левой стороны сайта)
- Позвонив по номеру телефона:
- +7(8482) 79-78-54;
- +7(8482) 55-96-39;
- +7(917) 121-53-01
- Написав на электронную почту: 89171215301@mail.ru
Далеко не полный список производителей промышленной электроники и оборудования, ремонтируемой в нашей компании.
|
|
Частотный преобразователь SINAMICS, как и другие его собратья оснащен информационной панелью, призванной сделать общение оператора и преобразователя максимально легким и комфортным. При вводе в эксплуатацию оборудования с помощью данной панели устройство программируется и настраивается, а в случае непредвиденной ситуации на панель частотного преобразователя выводится ошибка, вызвавшая аварийную остановку оборудования. Все возможные ошибки SINAMICS вы можете найти в руководстве пользователя (мануал) в формате PDF, скачать которые можно с нашего сайта. Устранение причины ошибки и ее сброс на преобразователе позволит в кратчайшие сроки возобновить работу. К сожалению не все ошибки можно исправить самостоятельно, некоторые ошибки SINAMICS возможно исправить только в специализированных сервисных центрах.
Если на вашем производстве появились проблемы с частотным преобразователем, от есть ошибка SINAMICS является критичной, и вы не можете сбросить ее самостоятельно, мы всегда рады вам помочь. Обращайтесь в сервисный центр «Кернел». Специалисты нашей компании в минимальные сроки проведут глубокую диагностику преобразователя частоты и последующий ремонт SINAMICS в . Оставьте заказ на ремонт частотника используя форму на сайте.
Компания «Кернел» производит ремонт частотных преобразователей в с 2002 года. За это время мы накопили колоссальный опыт в том числе опыт в ремонте и сбросе ошибок SINAMICS такого известного производителя как SIEMENS. Ремонт подобной промышленной электроники ответственное и сложное занятие, требующие максимальной отдачи, профессионализма и максимально полной материальной базе.
Специалисты нашего сервисного центра уделяют максимальное внимание к качеству исполнения ремонта (сброс ошибок), программирования и настройке частотных преобразователей, не зависимо от производителя данного промышленного оборудования. Именно поэтому мы смело даем гарантию на ремонт SINAMICS и замененные в процессе ремонта компоненты шесть месяцев.
Ошибки SINAMICS S120
В таблице ниже приведены все возможные ошибки SINAMICS S120
Ошибка |
Причина |
F06010 Infeed: Power unit EP 24 V missing in operation |
Ошибка в блоке питания, проблема в том, что он не выдаёт сигнал разрешения. |
F06300 Infeed: Line voltage too high at power on |
Напряжение сети слишком высокое. Ошибка возникла в блоке питания. |
F07410 Drive: Current controller output limited |
Ошибка в измерении актуального тока. Возможные причины: неисправен привод, неисправен двигатель. |
F07412 Drive: Commutation angle incorrect (motor model) |
Движение вала двигателя отличается от ожидаемого. Возможно неисправен привод или двигатель. Существует вероятность что неисправен или не настроен энкодер. |
F07413 Drive: Commutation angle incorrect (pole position identification) |
Движение вала двигателя отличается от ожидаемого более чем на 45 градусов. Возможно неисправен привод или двигатель. А также, возможно неисправен или не настроен энкодер. |
F07452 (A) LR: Following error too high |
Различие между заданным и актуальным значением позиции вала электродвигателя. Необходима диагностика электродвигателя или ремонт SINAMICS S120. |
F07453 LR: Position actual value conditioning error |
Ошибка обработки актуального значения позиции. Возможно неисправен энкодер. Необходима диагностика или ремонт энкодера. |
F07490 EPOS: Enable signal withdrawn while traversing |
Привод находится в состоянии «запрет включения» (стандартное применение). Проверьте все разрешающие сигналы. |
F07900 (N, A) Drive: Motor locked/speed controller at its limit |
Электродвигатель работал на пределе крутящего момента дольше, чем указано в p2177, и ниже порога скорости, установленного в p2175. Проверьте инверсию фактического значения. Проверьте подключение датчика двигателя. |
F07901 Drive: Motor overspeed |
Превышено максимально допустимое значение скорости электродвигателя. Допустимые пороги можно настроить в параметрах. Возможна неисправность в приводе или электродвигателе SIMOTICS S. |
F07902 (N, A) Drive: Motor stalled |
Код ошибки означает что двигатель остановлен. Это могло произойти из-за некорректного параметрирования или неисправности электродвигателя, возможна проблема с силовой платой SINAMICS S120. |
F30002 Power unit: DC link overvoltage |
Превышение допустимого напряжения звена постоянного тока. Проверьте напряжение сети и корректность подключения входных фаз. Мотор регенерирует слишком много энергии, проверьте тормозной резистор. |
F30003 Power unit: DC link undervoltage |
Напряжение звена постоянного тока слишком мало. Необходимо проверить напряжение сети и правильность фазировки клемм. Возможна неисправность в модуле подачи. Необходима диагностика Infeed Module. |
F30004 Power unit: Over temperature heatsink AC inverter |
Температура радиатора блока питания превысила допустимое значение. Необходимо проверить систему охлаждения, возможно вышел из строя вентилятор. Также необходимо проверить нагрузку двигателя (механическую часть). |
F30021 Power unit: Ground fault |
Произошло замыкание на землю. Следует проверить силовые кабели и обмотки двигателя. Например, прозвонить на корпус при помощи мегомметра. |
A30031 Power unit: Hardware current limiting, phase U |
Аппаратное ограничение тока. Фаза «U». Достигнут аппаратный предел тока по этой фазе. Следует проверить положение энкодера, кабели двигателя и нагрузку на двигатель. |
A30032 Power unit: Hardware current limiting, phase V |
Аппаратное ограничение тока. Фаза «V». Достигнут аппаратный предел тока по этой фазе. Следует проверить положение энкодера, кабели двигателя и нагрузку на двигатель. |
A30033 Power unit: Hardware current limiting, phase W |
Аппаратное ограничение тока. Фаза «W». Достигнут аппаратный предел тока по этой фазе. Следует проверить положение энкодера, кабели двигателя и нагрузку на двигатель. |
F30035 Power unit: Air intake over temperature |
Перегрев. Температура воздуха на входе в блок питания превысила допустимое предельное значение. Для силовых установок с воздушным охлаждением предел составляет 55 градусов по Цельсию. Проверьте, находится ли температура окружающей среды в допустимом диапазоне. |
F30040 Power unit: Undervolt 24 V |
Сбой источника питания 24 В. Порог 16 Вольт опустился ниже более чем на 3 мс. Проверьте напряжение питания 24 В постоянного тока на блоке питания. |
F30045 Power unit: Supply undervoltage |
Пониженное напряжение питания. Контроль напряжения на плате ЦАП сигнализирует о сбое пониженного напряжения на модуле. Нужно измерить питание 24 В постоянного тока на питающих клеммах блока питания. |
F30885 CU DRIVE-CLiQ: Cyclic data transfer error |
Нет связи с одним из силовых модулей Drive-Cliq системы, хотя он сконфигурирован. Произошла ошибка связи DRIVE-CLiQ между управляющим модулем и задействованным силовым модулем. Проверьте питание на соответствующем модуле. |
F31115 (N, A) Encoder 1: Amplitude error track A or B (A^2 + B^2) |
Ошибка амплитуды сигнала A или B. Амплитуда (A ^ 2 + B ^ 2) не лежит в пределах допустимого диапазона (функция программного мониторинга). Возможно оборвана одна из обмоток резольвера. |
F31116 (N, A) Encoder 1: Amplitude error, monitoring track A + B |
Ошибка амплитуды контроля сигналов A + B. Амплитуда выпрямленных сигналов энкодера A и B не находится в пределах допустимого диапазона (аппаратный мониторинг). Возможно требуется ремонт энкодера. |
F31120 (N, A) Encoder 1: Power supply voltage |
Сбой напряжения питания энкодера. Измеренное напряжение питания энкодера слишком мало. Проверьте кабель энкодера. |
A31400 (F, N) Encoder 1: Alarm threshold, zero mark distance error |
Измеренное количество импульсов между нулевыми метками не соответствует правильному значению. Такая неисправность может проявиться, например, из-за загрязнённого стекла энкодера. |
A31411 (F, N) Encoder 1: EnDat encoder signals alarms |
Сигнал предупреждения EnDat энкодера. В принятом пакете от EnDat энкодера установлены биты ошибки. Энкодер неисправен. |
F31885 (N, A) CU DRIVE-CLiQ: Cyclic data transfer error |
Ошибка связи DRIVE-CLiQ между модулем управления и задействованным энкодером. Проверьте питание на соответствующем энкодере. |
Руководства по эксплуатации SINAMICS
- Скачать руководство по эксплуатации SINAMICS G 120 manual- PDF
- Скачать руководство по эксплуатации SINAMICS S 120 manual- PDF
- Скачать руководство по эксплуатации SINAMICS V 20 manual- PDF
- Скачать руководство по эксплуатации SINAMICS G 120c manual- PDF
- Скачать руководство по эксплуатации SINAMICS G 110 manual- PDF
- Скачать руководство по эксплуатации SINAMICS G 150 manual- PDF
- Скачать руководство по эксплуатации SINAMICS V 90 manual- PDF
- Скачать руководство по эксплуатации SINAMICS G 120p manual- PDF
- Скачать руководство по эксплуатации SINAMICS S 150 manual- PDF
- Скачать руководство по эксплуатации SINAMICS G 130 manual- PDF
- Скачать руководство по эксплуатации SINAMICS V 70 manual- PDF
- Скачать руководство по эксплуатации SINAMICS G 180 manual- PDF
- Скачать руководство по эксплуатации SINAMICS Gh180 manual- PDF
- Скачать руководство по эксплуатации SINAMICS G 120x manual- PDF
- Скачать руководство по эксплуатации SINAMICS G 110m manual- PDF
Специалисты сервисного центра исправляют ошибки SINAMICS как частотных преобразователей, так и сервоприводов (SERVODRIVE), силовых модулей (POWER MODULE) и модулей управления (CONTROL UNIT).
силовые модули (POWER MODULE) Sinamics |
модули управления (CONTROL UNIT) Sinamics |
SINAMICS POWER MODULE pm240 |
SINAMICS CONTROL UNIT CU240E |
Схемы соединений управляющих модулей CU230P для SINAMICS G120
Схема соединений управляющего модуля CU230P−2 HVAC |
Схема соединений управляющего модуля CU230P−2 DP |
|
|
Схема соединений управляющего модуля CU230P−2 CAN |
|
|
Ремонт SINAMICS
Специалисты сервисного центра Кернел выполнят ремонт и сброс ошибок SINAMICS в максимально сжатые сроки. При ремонте преобразователя частоты SINAMICS вы гарантированно получаете:
- Глубокую диагностику неисправного преобразователя с выявлением неисправных компонентов;
- Замену неисправных компонентов на новые;
- Ремонт в максимально сжатые сроки;
- Сброс ошибок SINAMICS
- Проверку отремонтированного частотника на специальном стенде;
- Оригинальные запасные части;
- Гарантию на ремонт SINAMICS 6 месяцев;
- Гарантию на запасные части 6 месяцев.
Компания «Кернел» предлагает квалифицированный ремонт частотный преобразователей в сжатые сроки по цене 20% — 40% от стоимости нового частотника. За время существования компании, наши инженеры отремонтировали не одну тысячу единиц промышленного оборудования, постоянно повышая свою квалификацию.
Ремонт SINAMICS в производится исключительно с использованием оригинальных запасных частей, на компонентном уровне с применением высокотехнологичного оборудования, квалифицированным персоналом с инженерным образованием.
К сожалению, от поломок дорогостоящего оборудования никто не застрахован. В зависимости от разных факторов, рано или поздно, любое, даже самое надежное промышленное оборудование выходит из строя, преобразователи частоты SINAMICS не исключение. В данной ситуации на помощь придет наша компания, и инженеры, профессионализм которых не ставится под сомнение.
Благодаря новейшему инновационному диагностическому оборудованию инженеры сервисного центра в кратчайшие сроки проведут глубокую диагностику вышедшего из строя частотного преобразователя SINAMICS найдут неисправный компонент и заменят его на новый.
Еще раз хочется подчеркнуть тот факт, что, производя ремонт и сбрасывая ошибку SINAMICS мы используем только оригинальные запасные части и даем гарантию не только на проведенные ремонтно-восстановительные работы, но и на запасные части, которые были заменены в процессе восстановления частотного преобразователя шесть месяцев.
Менеджеры и специалисты сервисного центра всегда стараются входить в положение заказчика и выполнить ремонт SINAMICS в максимально кратчайшие сроки тем самым минимизировать простой оборудования.
Мы ценим своих клиентов и делаем упор на качество выполненных работ, а также время его выполнения. Сберегите свой бюджет, обратитесь за ремонтом SINAMICS S120 в нашу компанию.
Оставить заявку на ремонт и сброс ошибок SINAMICS
Оставить заявку на ремонт и сброс ошибок SINAMICS в можно с помощью специальной формы, которая вызывается нажатием одноименной кнопки в верхней части страницы. Все вопросы, связанные с ремонтом и ошибками SINAMICS в , вы можете задать нашим менеджерам. Связаться с ними можно несколькими способами:
- Заказав обратный звонок (кнопка в правом нижнем углу сайта)
- Посредством чата (кнопка расположена с левой стороны сайта)
- Позвонив по номеру телефона: +7(8482) 79-78-54; +7(917) 121-53-01
- Написав на электронную почту: 89171215301@mail.ru
Вот далеко не полный список производителей промышленной электроники и оборудования, ремонтируемой в нашей компании.
Оглавление:
- Коды ошибок частотника Siemens G120
- Типы сообщений
- Индикация
- Коды отказов частотника
- F01000 – аппаратная/программная ошибка
- F01001 – ошибка FloatingPoint
- F01002 – аппаратная/программная ошибка
- F01003 – Задержка квитирования при обращении к памяти
- F01010 – Неизвестный тип привода
- F01018 – Запуск прерван многократно
- F01023 – тайм-аут ПО внутренний
- F01054 – высокая вычислительная нагрузка
- F01068 – высокая загруженность памяти
- F01250 – ошибка данных CU-EEPROM Read-Only
- F06922 – выпадение фазы тормозного резистора
- F07011 – перегрев двигателя
- F07220 – нет управления через PLC
- F07300 – отсутствует подключение сетевого контактора
- F07801 – перегрузка двигателя по току
- F07807 – обнаружено коротко замыкание / замыкание на землю
- F07900 (N, A) — Привод: двигатель заблокирован
- F07902 (N, A) — Привод: двигатель опрокинут
- A07910 (N) — Привод: перегрев двигателя
- F30002 Силовая часть: напряжение промежуточного контура перенапряжение
- F30003 Силовая часть: пониженное напряжение промежуточного контура
- F30004 Силовая часть: перегрев радиатора инвертора
- F30005 Силовая часть: перегрузка I2t
- F30011 Силовая часть: выпадение фазы сети в силовой цепи
- F30012 Силовая часть: датчик температуры радиатор обрыв кабеля
- F30013 Силовая часть: датчик температуры радиатор короткое замыкание
- F30017 Силовая часть: слишком частое срабатывание ограничения тока аппаратного обеспечения
- F30021 Силовая часть: замыкание на землю
- F30024 Силовая часть: перегрев, температурная модель
- F30025 Силовая часть: перегрев чипа
Преобразователь частоты (ПЧ) – сложное устройства управления электрическим двигателем. В случае нештатных и аварийных ситуаций ПЧ выдает сообщения об аварии или предупреждении на панель частотника или по линии связи в контроллер, так же может остановить двигатель во избежание поломок оборудования. На панели частотника выдается код ошибки. В данной статье приведены коды ошибок, их детальное описание и возможные причины появления.
Типы сообщений
Существует несколько типов сообщений:
- A – предупреждение, выводится в случае появления неаварийных ситуаций, на которые необходимо обратить внимание. Сброс при исчезновении причины предупреждения
- F – ошибка, выводится в случае появления аварийных ситуаций. Сброс при исчезновении причины отказа и подтверждения данного отказа.
- N – сообщение отсутствует или «внутреннее сообщение».
- C – сообщение безопасности.
Предупреждение. Код сопровождается буквой A. Выводятся в случае появления неаварийных ситуаций, на которые стоит обратить внимание. Сбрасываются при исчезновении причины предупреждения.
Отказ. Код сопровождается буквой F. Выводятся в случае появления аварийных ситуаций. Сбрасываются при исчезновении причины отказа и подтверждения данного отказа.
Индикация
На частотнике присутствует индикатор с обозначением RDY с помощью которого можно определить наличие отказов.
Мигающий красный индикатор один раз в пол секунды – обозначает отказ.
Коды отказов частотника:
Это – лишь часть списка кодов ошибок, которые описаны в руководстве. Если требуемый код ошибки не был описан в статье – необходимо воспользоваться официальным руководством пользователя.
F01000 – аппаратная/программная ошибка
Возможные причины:
- Возникла ошибка программного обеспечения или внутренняя программная ошибка.
Возможные решения:
- Обработать буфер ошибок (r0945).
- Выполнить POWER ON для всех компонентов (выключить/включить).
- При необходимости проверить данные в энергонезависимой памяти (к примеру, на карте памяти).
- Обновить микропрограммное обеспечение до новой версии.
- Связаться с «горячей линией».
- Заменить управляющий модуль.
F01001 – ошибка FloatingPoint
Возможные причины:
- При работе с типом данных FloatingPoint произошла ошибка.
Возможные решения:
- Выполнить POWER ON для всех компонентов (выключить/включить).
- Проверить конфигурацию сигналов блоков для FBLOCKS.
- Проверить конфигурацию и сигналы схем для DCC.
- Обновить микропрограммное обеспечение до новой версии.
- Связаться с «горячей линией»
F01002 – аппаратная/программная ошибка
Возможные причины:
- Возникла ошибка программного обеспечения или внутренняя программная ошибка.
Возможные решения:
- Выполнить POWER ON для всех компонентов (выключить/включить).
- Обновить микропрограммное обеспечение до новой версии.
- Связаться с «горячей линией».
F01003 – Задержка квитирования при обращении к памяти
Возможные причины:
- При обращении к ячейке памяти возникал ошибка.
Возможные решения:
- выполнить POWER ON для всех компонентов (выключить/включить).
- связаться с «горячей линией».
F01010 – Неизвестный тип привода
Возможные причины:
- Был найден неизвестный тип привода.
Возможные решения:
- Заменить блок питания.
- Выполнить POWER ON (выключить/включить).
- Обновить микропрограммное обеспечение.
- Связаться с «горячей линией»
F01018 – Запуск прерван многократно
Возможные причины:
- Загрузка модуля была отменен многократно. Поэтому выполняется загрузка модуля с заводскими установками.
- Возможные причины отмены загрузки:
- Прерывание подачи питания.
- Сбой CPU.
- Недействительное параметрирование.
Возможные решения:
- Выполнить POWER ON (выключить/включить). После включения модуль снова загружается с правильными параметрами (при наличии таковых).
- Восстановить правильное параметрирование. Примеры:
- Выполнить первый ввод в эксплуатацию, сохранить параметры, выполнить POWER ON (выключить/включить).
- Загрузить другую правильную резервную копию параметров (к примеру, с карты памяти), сохранить параметры, выполнить POWER ON (выключить/включить).
Указание: При повторном сборе эта ошибка снова появляется после нескольких отмененных загрузок.
F01023 – тайм-аут ПО внутренний
Возможные причины:
- Возник внутренний программный тайм-аут.
Возможные решения:
- Выполнить POWER ON для всех компонентов (выключить/включить).
- обновить микропрограммное обеспечение до новой версии.
- связаться с «горячей линией».
F01054 – высокая вычислительная нагрузка:
При наличии этой ошибки сохранение параметров невозможно
возможные причины:
- Слишком высокая вычислительная нагрузка;
- Слишком высокая пиковая нагрузка.
Возможные решения:
- Снизить нагрузку на процессор приводного устройства до уровня ниже 100 %.
- Проверить и при необходимости настроить время выборки.
- Деактивировать функциональные модули.
- Деактивировать приводные объекты.
- Удалить приводные объекты из заданной топологии.
- Соблюдать правила топологии DRIVE-CLiQ и при необходимости изменить топологию DRIVE-CLiQ. При использовании Drive Control Chart (DCC) или свободных функциональных блоков (FBLOCKS) действует:
- Нагрузка на процессор отдельных динамических групп на приводном объекте может быть считана в r21005 (DCC) и r20005 (FBLOCKS).
- При необходимости изменить согласование динамической группы таким образом, чтобы время выборки увеличилось.
- При необходимости сократить число циклически вычисляемых блоков (DCC) или функциональных блоков (FBLOCKS).
F01068 – высокая загруженность памяти.
Возможные причины:
- Слишком высокая загруженность области памяти данных
Возможные решения:
- Деактивировать функциональный модуль.
- Деактивировать приводной объект.
- Удалить приводной объект из заданной топологии.
F01250 – ошибка данных CU-EEPROM Read-Only
Возможные причины:
- Ошибка при чтении данных Read-Only EEPROM на устройстве управления.
Возможные решения:
- выполнить POWER ON.
- заменить устройство управления
F06922 – выпадение фазы тормозного резистора;
Возможные причины:
- Обнаружено выпадение фазы для тормозного резистора.
Возможные решения:
- Проверить подводку тормозных резисторов.
F07011 – перегрев двигателя;
Возможные причины:
- двигатель перегружен.
- слишком высокая окружающая температура двигателя.
- обрыв провода датчика или отсутствие подключения.
Возможные решения:
- Снизить нагрузку двигателя.
- Проверить внешнюю температуру и вентиляцию двигателя.
- Проверить проводку и соединение PTC или биметаллического NC.
F07220 – нет управления через PLC
Возможные причины:
- Сигнал «Управление через PLC» отсутствует при работе. –
- неправильное подключение бинекторного входа для «Управление через PLC» (p0854).
- СЧПУ верхнего уровня отменила сигнал «Управление через PLC».
- передача данных через полевую шину (Master/привод) была прервана
Возможные решения:
- Проверить подключение бинекторного входа для «Управления через PLC».
- проверить и при необходимости включить сигнал «Управление через PLC».
- проверить передачу данных через полевую шину (Master/привод).
F07300 – отсутствует подключение сетевого контактора;
Возможные причины:
- Сетевой контактор не включен в течении времени в p0861;
- Сетевой контактор не выключен в течении времени в p0861;
- Сетевой контактор отключился при работе;
- Сетевой контактор включен, хотя преобразователь отключен.
Возможные решения:
- Проверить установку p0860.
- Проверить цикл подтверждения сетевого контактора.
- Увеличить время контроля в p0861.
F07800 – отсутствует силовая часть
Возможные причины:
- Чтение параметров силовой части невозможно или в силовой части нет сохраненных параметров
- выбрана неправильная топология при вводе в эксплуатацию.
Возможные решения:
- Выполнить ПОДАЧУ ПИТАНИЯ для всех компонентов (выключить/включить).
- Проверить и при необходимости заменить силовую часть.
- Проверить и при необходимости заменить управляющий модуль.
- После исправления топологии снова выполнить загрузку параметров с помощью ПО для ввода в эксплуатацию.
F07801 – перегрузка двигателя по току
Возможные причины:
- Эффективная граница тока установлена слишком низкой;
- Регулятор тока настроен неправильно;
- Режим U/f: время разгона установлено слишком маленьким или слишком высокая нагрузка;
- Режим U/f: короткое замыкание в кабеле двигателя или замыкание на землю;
- Режим U/f: ток двигателя не подходит к току силовой части;
- Включение на вращающийся двигатель без функции «рестарт на лету» (p1200).
Возможные решения:
- Проверить границы тока.
- Векторное управление: проверить регулятор тока.
- Управление U/f: проверить ограничительный регулятор тока.
- Увеличить рампу разгона или уменьшить нагрузку.
- Проверить двигатель и кабели двигателя на предмет короткого замыкания и замыкания на землю.
- Проверить двигатель на предмет соединения звезда/треугольник и параметрирования шильдика.
- Проверить комбинацию силовой части и двигателя.
- Выбрать функцию рестарта на лету, если происходит включение на вращающийся двигатель
F07807 – обнаружено коротко замыкание / замыкание на землю.
Возможные причины:
- На выходных клеммах преобразователя со стороны двигателя было обнаружено межфазное короткое замыкание или замыкание на землю.
Указание: Перепутывание кабелей питания и двигателя также определяется как короткое замыкание со стороны двигателя. Проверка на предмет замыкания на землю функционирует только в состоянии покоя двигателя. Включение на не размагниченный или только частично размагниченный двигатель может определяться как замыкание на землю.
Возможные решения:
- Проверить соединение преобразователя со стороны двигателя на предмет наличия межфазного короткого замыкания.
- Исключить перепутывание кабеля питания и двигателя.
- Проверить на предмет замыкания на землю.
- Не включать разрешение импульсов на вращающийся двигатель без активированной функции «Рестарт на лету».
- Увеличить продолжительность размагничивания.
- Для обеспечения состояния покоя увеличить время задержки гашения импульсов.
- При необходимости деактивировать контроль.
F07900 (N, A) — Привод: двигатель заблокирован
Возможные причины:
- Двигатель работает дольше, чем время в p2177, на границе момента вращения и ниже установленного порога числа оборотов в p2175. Это сообщение может появиться, если число оборотов колеблется, и выход регулятора числа оборотов постоянно кратковременно доходит до ограничения. Возможно и то, что тепловой контроль силовой части уменьшает границу тока (см. p0290) и из-за этого происходит торможение двигателя.
Возможные решения:
- Проверить двигатель на предмет свободного движения.
- Проверить эффективную границу момента вращения.
- Проверить и при необходимости исправить параметры сообщения «Двигатель заблокирован».
- Проверить разрешения направления вращения при рестарте двигателя на лету.
- Для управления U/f: проверить границы тока и время разгона.
F07902 (N, A) — Привод: двигатель опрокинут
Возможные причины:
- Было обнаружено, что двигатель опрокинут дольше, чем установлено в p2178.
Возможные решения:
- Следует убедиться, что как идентификация параметров двигателя, так и измерение при вращении, были выполнены.
- Проверить, не опрокидывается ли привод в управляемом режиме или когда заданное значение скорости еще ноль, только нагрузкой. Если да, то увеличить заданное значение тока через p1610.
- Если время возбуждения двигателя (p0346) было сильно уменьшено и привод опрокидывается при включении и немедленном начале движения, то снова увеличить p0346.
- Проверить, не имеет ли место выпадение фазы сети у силовых частей PM230, PM250, PM260.
- Проверить, не отсоединена ли электропроводка к двигателю (см. A07929).
- Если ошибки отсутствуют, то можно увеличить отказоустойчивость (p1745) или время задержки (p2178).
- Проверить предельный ток. При слишком низких предельных токах намагничивание привода невозможно.
- Если возникает ошибка со значением 2 при очень быстром разгоне двигателя в области ослабления поля, то путем уменьшения p1596 или p1553 можно сократить отклонение между заданным и фактическим значением потока и тем самым сообщение не будет появляться.
A07910 (N) — Привод: перегрев двигателя
Возможные причины:
- Измеренная температура двигателя или температура тепловой модели двигателя превысила порог предупреждения (p0604).
Возможные решения:
- Проверить нагрузку двигателя.
- Проверить температуру окружающей среды двигателя.
- Проверить KTY84.
- Проверить перегревы тепловой модели двигателя.
F30002 Силовая часть: напряжение промежуточного контура перенапряжение
Возможные причины:
- Силовая часть обнаружила перенапряжение в промежуточном контуре.
- Двигатель рекуперирует слишком много энергии.
- Слишком высокое напряжение питающей сети.
- Фаза сети прервана.
- Регулирование напряжения промежуточного контура отключено.
- Слишком высокая или низкая динамика регулятора напряжения промежуточного контура.
Возможные решения:
- Увеличить время торможения.
- Установить время сглаживания. Это рекомендуется прежде всего в режиме U/f, чтобы разгрузить регулятор напряжения промежуточного контура при коротком времени торможения задатчика интенсивности.
- Активировать регулятор напряжения промежуточного контура.
- Согласовать динамику регулятора напряжения промежуточного контура.
- Проверить напряжение питающей сети и установку в p0210.
- Проверить и исправить назначение фаз на силовой части.
- Проверить фазы сети.
F30003 Силовая часть: пониженное напряжение промежуточного контура
Возможные причины:
- Силовая часть определила пониженное напряжение в промежуточном контуре.
- Отказ питания.
- Напряжение сети ниже допустимого значения.
- Прерывание фазы сети.
Возможные решения:
- Проверить напряжение сети.
- Проверить фазы сети.
F30004 Силовая часть: перегрев радиатора инвертора
Возможные причины:
- Температура радиатора силовой части превысила допустимое предельное значение.
- Недостаточная вентиляция, отказ вентилятора.
- Перегрузка. — слишком высокая внешняя температура.
- Слишком высокая частота импульсов.
Возможные решения:
- Проверить, работает ли вентилятор.
- Проверить компоненты вентилятора.
- Проверить, находится ли внешняя температура в допустимом диапазоне.
- Проверить нагрузку двигателя.
- Уменьшить частоту импульсов, если она выше номинальной частоты импульсов.
Внимание: Эта ошибка может быть квитирована только после выхода за нижнюю границу порога предупреждения для A05000.
F30005 Силовая часть: перегрузка I2t
Возможные причины:
- Перегрузка силовой части (r0036 = 100 %).
- Допустимый ном. ток силовой части был превышен недопустимо долго.
- Допустимый нагрузочный цикл не был соблюден.
Возможные решения:
- Снизить длительную нагрузку.
- Согласовать нагрузочный цикл.
- Проверить ном. токи двигателя и силовой части.
- Уменьшить границу тока (p0640).
- При работе с характеристикой U/f: уменьшить постоянную времени интегрирования токоограничительного регулятора (p1341).
F30011 Силовая часть: выпадение фазы сети в силовой цепи
Возможные причины:
- Выпадение фазы сети.
- Недопустимая асимметрия 3 фаз сети.
- Емкость конденсатора промежуточного контура создает резонансную частоту с индуктивностью сети и возможно с интегрированным в силовую часть дросселем.
- Срабатывание предохранителя фазы силовой цепи.
- Выпадение фазы двигателя.
Возможные решения:
- Проверить предохранители силовой цепи.
- Проверить, не искажает ли однофазный потребитель напряжения сети.
- Рассогласовать резонансную частоту с индуктивностью сети путем подключения сетевого дросселя.
- Погасить резонансную частоту с индуктивностью сети путем программного переключения на компенсацию напряжения промежуточного контура или усиления сглаживания. Но это может ухудшить пульсацию момента на двигателе.
- Проверить электропроводку к двигателю.
F30012 Силовая часть: датчик температуры радиатор обрыв кабеля
Причина:
- Соединение с датчиком температуры радиаторов в силовой части прервано.
Решение:
- Связаться с изготовителем.
F30013 Силовая часть: датчик температуры радиатор короткое замыкание
Причина:
- Датчик температуры радиатора в силовой части замкнут накоротко.
Решение:
- Связаться с изготовителем.
F30017 Силовая часть: слишком частое срабатывание ограничения тока аппаратного обеспечения
Возможные причины:
- Слишком частое срабатывание ограничения тока аппаратного обеспечения в соответствующей фазе. Число допустимых превышений зависит от вида и типа силовой части.
- Регулирование спараметрировано неправильно.
- Ошибка в двигателе или в силовых кабелях.
- Превышена макс. допустимая длина силовых кабелей.
- Слишком высокая нагрузка двигателя.
- Неисправность силовой части.
Возможные решения:
- Проверить параметры двигателя.
- Проверить тип соединения двигателя (звезда/треугольник).
- Проверить нагрузку двигателя.
- Проверить соединения силовых кабелей.
- Проверить силовые кабели на предмет короткого замыкания или замыкания на землю.
- Проверить длину силовых кабелей.
- Заменить силовую часть.
F30021 Силовая часть: замыкание на землю
Возможные причины:
- Замыкание на землю в силовых кабелях. –
- Замыкание на землю на двигателе. –
- Трансформатор неисправен. –
- Зажимающие тормоз является причиной срабатывания аппаратного контроля постоянного тока. –
- Короткое замыкание на тормозном резисторе. Значение ошибки (r0949, дес. интерпретация): 0: —
- Сработал аппаратный контроль постоянного тока. –
- Короткое замыкание на тормозном резисторе. > 0:
- Величина суммарного тока [32767 = 271 % ном. Тока
Возможные решения:
- Проверить соединение силовых кабелей. –
- Проверить двигатель. –
- Проверить преобразователь тока. –
- Проверить кабели и контакты соединения тормоза (возможен обрыв кабеля). –
- Проверить тормозной резистор. Смотри также: p0287
F30024 Силовая часть: перегрев, температурная модель
Возможные причины:
- Разность температур между радиатором и чипом превысила допустимое предельное значение.
- Допустимый нагрузочный цикл не соблюден.
- Недостаточное вентилирование, выход из строя вентилятора.
- Перегрузка.
- Внешняя температура слишком высока.
- Частота импульсов слишком высока.
Возможные решения:
- Согласовать нагрузочный цикл.
- Проверить, работает ли вентилятор.
- Проверить фильтрующие элементы.
- Проверить, в допустимом ли диапазоне находится температура окружающей среды.
- Проверить нагрузку двигателя.
- Уменьшить частоту модуляции, если она выше номинальной.
- Если активно торможение на постоянном токе: уменьшить тормозной ток (p1232).
F30025 Силовая часть: перегрев чипа
Возможные причины:
- Температура чипа полупроводников превысила допустимое предельное значение.
- Допустимый нагрузочный цикл не был выдержан.
- Недостаточная вентиляция, отказ вентилятора.
- Перегрузка.
- Слишком высокая внешняя температура.
- Слишком высокая частота импульсов.
Возможные решения:
- согласовать нагрузочный цикл.
- проверить, работает ли вентилятор.
- проверить элементы вентилятора.
- проверить, находится ли внешняя температура в допустимом диапазоне.
- проверить нагрузку двигателя.
- уменьшить частоту импульсов, если она выше ном. частоты импульсов.
Внимание: эта ошибка может быть квитирована только после выхода за нижнюю границу порога предупреждения для предупреждения A05001.
Нужна консультация?
Задавайте свои вопросы и получите ответ бесплатно!
Отзывы о пройденном обучении
|
#1 |
Member
Join Date: Jun 2014 Location: minersville Posts: 22 |
Sinamics S210 Fault F07900 I am having issues with my motor/drive. We are getting error F07900 at times and when we get it the motor is not being told to move it is stationary. We have replaced the feedback cable. I tried looking this issue up but most of the remedies are for commissioning. This system has been running for 4 years with no issues. Can anyone help? |
|
|
#2 |
Member
Join Date: Jun 2002 Location: Upstate South Cackalacky Posts: 2,174 |
Do you know how to setup a trace in Starter? |
|
|
#3 |
Member
Join Date: Jun 2014 Location: minersville Posts: 22 |
No I do not. I am not very familiar with Siemens at all. One thing about it though is that it only comes up when the machine its on is sitting in a «Position» waiting to receive a part. It doesn’t come up when its visibly moving. |
|
Specifications:843/843316-sinamics_v90.pdf file (03 Apr 2023) |
Accompanying Data:
Siemens SINAMICS V90 Controller, Control Unit PDF Operating Instructions Manual (Updated: Monday 3rd of April 2023 12:27:21 AM)
Rating: 4.8 (rated by 48 users)
Compatible devices: SIRIUS 3SX5100-2F, MKB-1, VRD Series, 8GK9735-1KK.0, SIMOTICS FD 1LN1, LMS14, 2AO U HF, RUGGEDCOM RMC30.
Recommended Documentation:
Text of Operating Instructions Manual
(Ocr-Read Version Summary of Contents, UPD: 03 April 2023)
-
273, Parameters 10.2 Parameter list SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 07/2015, 6SL3298-0AV60-0BP0 273 Par. No. Name Min Max Factory Setting Unit Data type Effective Can be changed p29033 PTO: Direction change 0 1 0 — I16 IM T Description: Select the PTO direction. • 0: PTO positive PTO direction does not change. PT…
-
194, Control functions 7.7 Communicating with the PLC SINAMICS V90, SIMOTICS S-1FL6 194 Operating Instructions, 07/2015, 6SL3298-0AV60-0BP0 Process data overview Control mode PTI IPos S T Control data 40100 PTI mode control word IPos mode control word S mode control word T mode control word 40101 — — Speed setpoint — 40102 — Position s…
-
63, Siemens SINAMICS V90 SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 07/2015, 6SL3298-0AV60-0BP0 63 Connecting 4 4.1 System connection The SINAMICS V90 servo system is connected as follows:
… -
138, Control functions 7.2 General functions SINAMICS V90, SIMOTICS S-1FL6 138 Operating Instructions, 07/2015, 6SL3298-0AV60-0BP0 Note After modifying parameter p29001, you must save the parameter and then restart the drive to ensure norm al operation. In this case, you must perform referencing again because the reference point will be lost after p29001 changes. 7.…
-
150, Siemens SINAMICS V90 Control functions 7.3 Pulse train input position control (PTI) SINAMICS V90, SIMOTICS S-1FL6 150 Operating Instructions, 07/2015, 6SL3298-0AV60-0BP0 7.3.8 Speed limit Four sources in total are available for the speed limit. You can select one of them via a combination of digital input signals SLIM1 and SLIM2: Digital signal Speed limit SLIM2 SLIM1 0 0 I…
-
280, Parameters 10.2 Parameter list SINAMICS V90, SIMOTICS S-1FL6 280 Operating Instructions, 07/2015, 6SL3298-0AV60-0BP0 Par. No. Name Min Max Factory Setting Unit Data type Effective Can be changed p29302[0.. .3] Digital Input 2 Assign- ment 0 28 2 — I16 IM T Description: Defines the function of digital input signal DI2 Index: • …
-
19, Safety instructions 1.2 Additional safety instructions SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 07/2015, 6SL3298-0AV60-0BP0 19 WARNING Danger to life due to fire as a result of overheating caused by incorrect operation When incorrectly operated and in the case of a fault, the motor can overheat resulting in fire and smoke. This can r…
-
127, Basic operator panel (BOP) 6.5 Auxiliary functions SINAMICS V90, SIMOTICS S-1FL6 Operating Instructions, 07/2015, 6SL3298-0AV60-0BP0 127 6.5 Auxiliary functions In total, there are 9 BOP functions available: ① Jog ⑥ Update firmware ② Save parameter set in drive ⑦ Adjust AI1 offset ③ Restore parameter values to default ⑧ Adjust …
-
216, Safety Integrated function 8.3 System features SINAMICS V90, SIMOTICS S-1FL6 216 Operating Instructions, 07/2015, 6SL3298-0AV60-0BP0 DANGER Safety Integrated can be used to minimize the level of risk associated with machines and plants. Machines and plants can only be operated safely in conjunction with Safety Integrated, however, when the machine manufacturer is famil…
-
130, Basic operator panel (BOP) 6.5 Auxiliary functions SINAMICS V90, SIMOTICS S-1FL6 130 Operating Instructions, 07/2015, 6SL3298-0AV60-0BP0 Note You must save the parameter set after setting the parameter set to the default values; otherwise, the default values will not be activated. Reference Saving parameters (RAM to ROM) (Page 129) 6.5.4 Transferrin…
-
58, Siemens SINAMICS V90 Mounting 3.2 Mounting the motor SINAMICS V90, SIMOTICS S-1FL6 58 Operating Instructions, 07/2015, 6SL3298-0AV60-0BP0 Shaft-height 45 mm, with absolute encoder (unit: mm) Rated power Rated torque k k1 a b b1 0.4 kW 1.27 Nm 157 203.5 172 15 61.5 0.75 kW 2.39 Nm 204 250.5 219 Shaft-height 65 mm, with incremental encoder (unit: mm) …
Siemens SINAMICS V90 Recommended Instructions:
Gx 3.0 Gw Bike, STOCKHOLM DINING CHAIR, SBCHP195, MC-118 MP3
-
Danfoss
VLT AQUA Drive FC 200
Low Harmonic Drive Operating Instructions MG20T202MAKING MODERN LIVING POSSIBLEVLT® Low Harmonic DriveOperating InstructionsVLT® AQUA Drive FC 200www.danfoss.com/drives *MG20T202*130R0504 MG20T202 Rev. 2011-12-19 …
VLT AQUA Drive FC 200 175
-
YASKAWA
SGDV
SGMMV ServomotorSGDV SERVOPACKRotational MotorAnalog Voltage Reference and Pulse Train ReferenceDC Power Input Σ-V SeriesAC Servo DrivesUSER’S MANUAL Design and MaintenanceMANUAL NO. SIEP S800000 81A12345678910OutlineDigital OperatorWiring and ConnectionTrial OperationOperationAdjustmentsUtility Functions (Fn)Monitor Displays (Un)TroubleshootingAppendix …
SGDV 320
-
Parker
ac890
AC890 Frame B, C & D with STO SIL3/PLeHA468445U004 Issue 6 Compatible with Software Version 3.9 onwardsProduct Manualaerospaceclimate controlelectromechanicalfiltrationfluid & gas handlinghydraulicspneumaticsprocess controlsealing & shieldingENGINEERING YOUR SUCCESS. …
ac890 711
-
ABB
ACS880-01
1This guide is applicable to the global IEC and NEC North American installations.Safety instructionsWARNING! Obey these instructions. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do electrical installation or maintenance work.WARNING! If you activate the automatic fault reset or automatic restart functi …
ACS880-01 16
-
Fuji Electric
ALPHA7
Instruction Manual FUJI AC SERVO AMPLIFIER ALPHA7 Series Function Safety Module TYPE WSU-ST1 Thank you very much for purchasing the Fuji AC Servo System ALPHA7 series. This instruction manual is the original instructions, and provides only minimum requisite information for wiring and operation of the product. Please read this instruction manual and the next …
ALPHA7 16
-
LinMot
C1250-EC-XC-0S
Oktober 2018Documentation of the EtherCAT Interface of the followingDrives:C1150-EC-XC-0S/1SC1250-EC-XC-0S/1SC1450-EC-VS-0S/1SE1450-EC-QN-0S/1SE1250-EC-UCManualEtherCAT LinMot Profile InterfaceDoc.: 0185-1079-E_6V3_MA_EtherCAT …
C1250-EC-XC-0S 60
-
Delta
ASDA-A2
優越性能‧精準定位‧高解析 EtherCAT 通訊型交流伺服驅動器 安裝說明 一般注意事項 感謝您使用本產品,此份安裝手冊提供 ASDA-A2-E 系列伺服驅動器及 ECMA 系列伺服馬達的相關資訊。在使用之前,請您仔細詳讀本安裝手冊以確保使用上的正確。此外,請妥善將其放置在明顯的地點以便� …
ASDA-A2 10
-
Siemens
Simodrive 611
Foreword Electrical Data 1 Mechanical Data 2 Configuration 3 Electrical Connections 4 Motor Components 5 Appendix A SIMODRIVE 611, SIMOVERT MASTERDRIVES General Section for Synchronous Motors Configuration Manual (PJAL), 11.2005 Edition 6SN1 197-0AD07-0BP4 …
Simodrive 611 70
-
Vacon
100 flow
vacon 100vacon 100 flowac drivesdrive supply switchinstallation instructiontaajuusmuuttajan syöttökytkinasennusohjenetztrennschalterinstallationsanleitungInterrupteur d’alimentation du convertisseur de fréquencemanuel d’installationlastbrytareinstallationsinstruktionhoofdschakelaar frequentieregelaarinstallatiehandleiding®® …
100 flow 40
