Codemeter ошибка 200

Symptom

PTV Visum/PTV Vissim does not start. Instead an error message is shown:
— «Error@AllocateHandle: CmContainer Entry not found, error 200».
— «CmStick Entry not found, error 200».

In the CmDust report this dongle is not listed anymore as a CmContainer, possibly neither as an available drive.
(In case of a single workplace license in the CmDust report of the client, in case of a network license in the CmDust report of the server.)

Cause

A single workplace license is expected on the local machine, a network license can be found on any machine in the network (including the local machine).
When plugging this dongle out and in, its LED will blink in red and green. The last blink should be green, if not this dongle could be defective.

Resolution

Create a CmDust report (of client and server), and a context file:

— CmDust report:

Start -> Programs -> Codemeter -> Tools -> CmDust.
This tool creates a file called CmDust-Result.log (the containing folder is opened automatically).

— Context file:

Taskbar -> System tray -> CodeMeter Control center -> License -> License Update -> Next -> Option ‘Create license request’ -> Next -> Option ‘Extend existing license’ -> Next -> Commit

Create a new Case in the Support portal
https://support.ptvgroup.com/
and attach these files. Within Support the issue is analysed as soon as possible and in case a new dongle is returned.

Источник

Error code 101

Protection key not found or not valid

Possible causes

  • CodeMeter key is not connected to the computer
  • The USB slot is not working properly
  • There are missing USB drivers
  • There is no network connection or ARCHICAD can not locate the license on the server

Error Code 230

General error code — protection key not found

Possible causes

  • No network connection to CodeMeter key server — check firewall settings (port 22350 needs to be open)
  • CodeMeter service is not running — check if CodeMeterMacX appears in the Activity Monitor Process list (Mac) or CodeMeterCC appears in Windows Task Manager

Error Code 267

  • This error message may come when borrowing a license from ARCHICAD
  • The source of this error is that the CodeMeter service is not properly running on the server computer. To fix this uninstall the CodeMeter driver on the server computer and then install it again. Before uninstalling the driver make sure that there aren’t any licenses in borrowed state. If you have such, return them or wait until the end of the expiration. You can find a setup guide here: CodeMeter/Server

Error code 503

All available ARCHICAD licenses are being used, please try to launch ARCHICAD later

Possible causes

  • CodeMeter driver is not installed on the computer
  • The key’s language code is different from the language version of the ARCHICAD
  • A local key is plugged into the server which can not work as a network key

Error code 970017

Protection key not found or not valid when running ARCHICAD versions before v13

Possible causes

  • CodeMeter enabler is not installed
  • CodeMeter key is not connected to the computer
  • The USB slot is not working properly
  • There are missing USB drivers
  • There is no network connection or ARCHICAD can not locate the license on the server
  • CodeMeter key has got a borrowed license

CodeMeter enabler can be downloaded from here: CodeMeter enabler download page For general troubleshooting see: CodeMeter/Troubleshooting

Источник

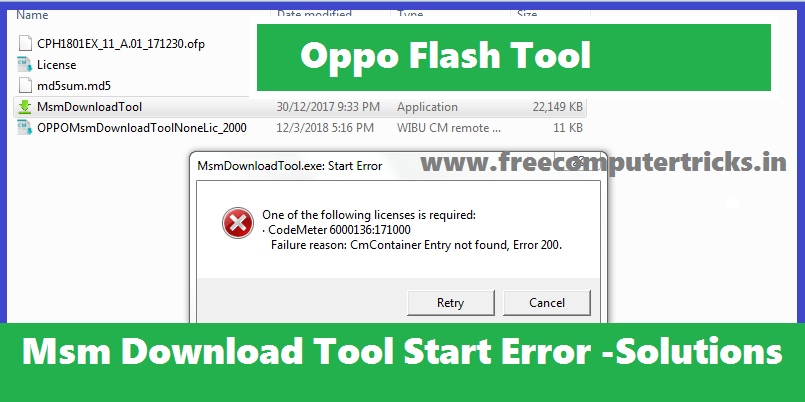

Msm Download Tool start error, one of the following license required  Code Meter 6000136:171000 Failure reason CM Container Entry Not Found Error 200. This is an error message you may see when the you flash Oppo Android smartphones using MSM Download Tool, this error comes due to wrong configuration of the flash tool or any other supporting tools. The Flashing Error «MsmDownloadTool.exe:Start Error One of the following license is required: . CodeMeter 6000136:17100 Failure reason: CmContainer Entery not found, error 200.« and here is the final solution to solve the error comes while flashing with Msm Download Tool.

 Msm Download Tool Oppo Flash Tool:

This tool is used for flashing and unlocking Android smartphones, using this tool you can flash Oppo, One Plus, Vivo and some other brands which supports Msm Download Tool. This tool supports .ofp firmware for example if the firmware ROM file name is CPH1801EX_11_A.01_171230.ofp then it can be flash with Msm Download Tool. When you use this tool to flash firmware on your Android smartphone, sometimes you may get some flashing errors or flash tool issues, and here we will show you how to solve Msm Downlaod Tool Starting Error and if you have other flashing errors then you can ask for solution through comments.

Msm Download Tool Start Error Solution Here — Oppo Flash Tool

Download Oppo Msm Download Tool Latest Version:
Oppo All Flash Tools Download Link | Download Here

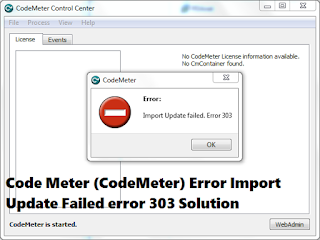

Code Meter (CodeMeter) Error Import Update Failed error 303 Solution



Msm Download Tool Start Error Solution:

  • Download the above tools and extract it.
  • Now uninstall Code Meter Control Center and Pda Net Desktop Tools if installed, then restart the Computer.
  • Now Install the Tools You have downloaded (CodeMeterRuntime and PdaNetA5105) and after installation complete please restart the Computer again.
  • Now open ENABLE (ENABLE.exe) and click on Enable.

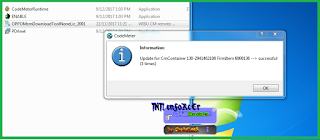

  • Now double click on OPPOMsmDownloadToolNoneLic_2001 file and you will see Update for Cm Container(CmContainer) Successful.
Update for CMContainer 130- Firm Item Successful
  • Now open Msm Download Tool and it will not show any errors.
How to Flash Oppo A71 CPH1801 Using Msm Download Tool — Error Soluion


Watch the Video Tutorial How to Solve Msm Download Tool Start Error : Watch On YouTube.

Now flash the Oppo phone using Msm download tool, this process is tested and working fine. If you are facing this problem to flash Oppo A71 CPH1801 then here you will get the solution for Oppo A71 flash tool Msm Download tool start error. Download Oppo A71 CPH1801 firmware, you can download it by searching on Internet, then follow the above steps to solve flash tool errors and unable to flash Oppo A71CPH1801 solution here.

Источник

Hello All,

I’m getting a CodeMeter error when I try to open SBPro the text of the error is:

“CodeMeter error: Please ensure your CM stick is securely in a USB port”

Everything was fine this afternoon but this evening this error appeared.

I did some research in this forum and found some post similar but not exactly the same. It looks like there is no license information on the CM stick.

Any help would be much appreciated since I can’t run SBPro.

Eric

Here’s some info from CodeMeter that might help diagnose this problem:

Events from CodeMeter Control Center:

2012-09-05 01:05:20: Logging activated.

2012-09-05 01:05:20: CodeMeter for Windows (B4.40.698.501.32.150)

2012-09-05 01:05:20: Running on Microsoft Windows 7 Business Edition, 64-bit Service Pack 1 (build 7601)

2012-09-05 01:05:20: Execution path: C:\Program Files (x86)\CodeMeter\Runtime\bin

2012-09-05 01:05:20: Found IPv4 address: 127.0.0.1 | 192.168.0.135

2012-09-05 01:05:20: Found IPv6 address: ::1 | fe80::4d34:3a62:ca8e:ef3%10

2012-09-05 01:05:20: Used Communication Mode: IPv6 IPv4 SharedMemory

2012-09-05 01:05:20: Used IP address: default address

2012-09-05 01:05:20: Used IP port: 22350

2012-09-05 01:05:20: Multicast server search: not available

2012-09-05 01:05:20: Run as network server: no

2012-09-05 01:05:20: Run as system service: yes

2012-09-05 01:05:20: Box Access: use direct access mode

2012-09-05 01:05:24: Detecting CmContainer with Serial Number 2-1638848

2012-09-05 01:05:24: Box Event HW59-507 (1638848) occurred.

2012-09-05 01:05:24: API Event HW0059 (RC) occurred.

2012-09-05 01:05:24: API Event WB0059 (MEMORY DAMAGED) occurred (returned to caller)

2012-09-05 01:05:24: Removable Device state has been changed!

2012-09-05 01:05:24: Removable Device state has been changed!

2012-09-05 01:05:42: Access from ::1 to SubSystem (Handle 16)

2012-09-05 01:05:42: Using security library version (US) 4.40.698.500

2012-09-05 01:05:42: Handle 16 released

2012-09-05 01:07:26: Executing Broadcast for CodeMeter License Servers

2012-09-05 01:07:27: Entry (100146:11081) not found — Event WB0200 (ENTRY NOT FOUND), Request IP-Address ::1

2012-09-05 01:07:27: API Error 200 (ENTRY NOT FOUND) occurred!

From the ‘Content’ page of ‘CodeMeter WebAdmin’:

“ERROR 201 The specified CmContainer () cannot be found.”

(Windows does recognize the CodeMeter.)

From the “Home” page of ‘CodeMeter WebAdmin’:

Host Name: My pc’s name

IP Address: 192.168.0.135

Operating System: Microsoft Windows 7 Business Edition, 64-bit Service Pack 1 (build 7601)

Server Startup: Sep/05/2012 01:05:20

Runtime Version: 4.40b

Server Version: Version 4.40a of Mar/15/2012 (Build 698)

WebAdmin Version: Version 4.40 of Mar/15/2012

From the ‘Server’ page of ‘CodeMeter WebAdmin’:

The name of my PC is shown and then there is no information other than the date of the last update (which is the time I rebooted)

From the ‘Configuration’ page of ‘CodeMeter WebAdmin’:

Bind AddressAll (Default)

Network Port: 22350

UDP Waiting Time: 1000ms

Server Search List: is empty

From the “Diagnosis” page:

2012-09-05 01:05:20: Logging activated.

2012-09-05 01:05:20: CodeMeter for Windows (B4.40.698.501.32.150)

2012-09-05 01:05:20: Running on Microsoft Windows 7 Business Edition, 64-bit Service Pack 1 (build 7601)

2012-09-05 01:05:20: Execution path: C:\Program Files (x86)\CodeMeter\Runtime\bin

2012-09-05 01:05:20: Found IPv4 address: 127.0.0.1 | 192.168.0.135

2012-09-05 01:05:20: Found IPv6 address: ::1 | fe80::4d34:3a62:ca8e:ef3%10

2012-09-05 01:05:20: Used Communication Mode: IPv6 IPv4 SharedMemory

2012-09-05 01:05:20: Used IP address: default address

2012-09-05 01:05:20: Used IP port: 22350

2012-09-05 01:05:20: Multicast server search: not available

2012-09-05 01:05:20: Run as network server: no

2012-09-05 01:05:20: Run as system service: yes

2012-09-05 01:05:20: Box Access: use direct access mode

2012-09-05 01:05:24: Detecting CmContainer with Serial Number 2-1638848

2012-09-05 01:05:24: Box Event HW59-507 (1638848) occurred.

2012-09-05 01:05:24: API Event HW0059 (RC) occurred.

2012-09-05 01:05:24: API Event WB0059 (MEMORY DAMAGED) occurred (returned to caller)

2012-09-05 01:05:24: Removable Device state has been changed!

2012-09-05 01:05:24: Removable Device state has been changed!

2012-09-05 01:05:42: Access from ::1 to SubSystem (Handle 16)

2012-09-05 01:05:42: Using security library version (US) 4.40.698.500

2012-09-05 01:05:42: Handle 16 released

2012-09-05 01:07:26: Executing Broadcast for CodeMeter License Servers

2012-09-05 01:07:27: Entry (100146:11081) not found — Event WB0200 (ENTRY NOT FOUND), Request IP-Address ::1

2012-09-05 01:07:27: API Error 200 (ENTRY NOT FOUND) occurred!
